Sweepers
Walk-behind and ride-on
Walk-behind
natascha.burger2024-12-06T11:11:46+01:00

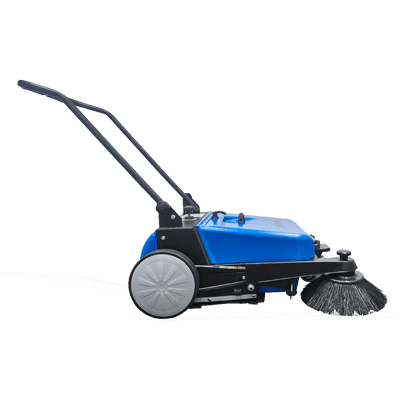

K 70|40
- Theoretical coverage max.2450 m²/h
- Working width max.700 mm
- Suctionno
Technical key data
- L x W x H790 x 760 x 460 mm
- Working width w/o side brushes500 mm
- with 1 side brush700 mm
- with 2 side brushes–
- Theoretical coverage max.2450 m²/h
- Noise level-
- Empty weight w/o battery25 kg
- Operating weight-
Batteries / Electrical Data
- Rated voltage-
- Rated power-
- Capacity, Gel min.-
- Capacity, Gel max.-
Waste container / Filter
- Waste container40 l
- Container emptyingmanuell
- Discharge height-
- Lifting load, max.-
- Filter-
- Filter size-
- Filter shaker-
Traction
- Mode of drivemanual
- Motor-
- Rated power-
- Speed, max.-
- Climbing abiltiy, emtpy / full load-
natascha.burger2024-12-16T10:58:33+01:00
KS 50|BM 40
- Theoretical coverage max.3120 m²/h
- Working width max.780 mm
- Suctionyes
Technical key data
- L x W x H1285 x 750 x 965 mm
- Working width w/o side brushes510 mm
- with 1 side brush780 mm
- with 2 side brushes–
- Theoretical coverage max.3120 m²/h
- Noise level<70 dB(A)
- Empty weight w/o battery79 kg
- Operating weight117 kg
Batteries / Electrical Data
- Rated voltage12 V
- Rated power280 W
- Capacity, Gel min.76 Ah 5
- Capacity, Gel max.105 Ah 5
Waste container / Filter
- Waste container40 l
- Container emptyingmanuell
- Discharge height-
- Lifting load, max.-
- FilterPanel filter
- Filter size2,25 m²
- Filter shakermanual
Traction
- Mode of driveRear-wheel drive
- Motor-
- Rated power-
- Speed, max.4 km/h
- Climbing abiltiy, emtpy / full load18 %
natascha.burger2024-12-16T11:04:44+01:00

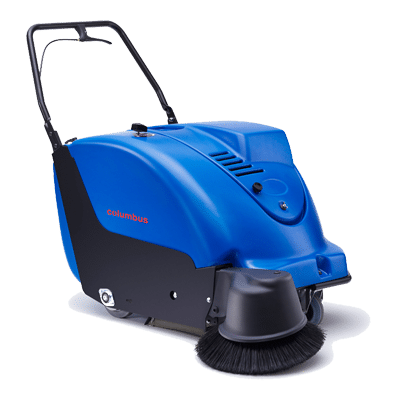

KS 60|BM 50
- Theoretical coverage max.3480 m²/h
- Working width max.870 mm
- Suctionyes
Technical key data
- L x W x H1380 x 840 x 980 mm
- Working width w/o side brushes600 mm
- with 1 side brush870 mm
- with 2 side brushes–
- Theoretical coverage max.3480 m²/h
- Noise level<70 dB(A)
- Empty weight w/o battery101 kg
- Operating weight139 kg
Batteries / Electrical Data
- Rated voltage12 V
- Rated power280 W
- Capacity, Gel min.76 Ah 5
- Capacity, Gel max.105 Ah 5
Waste container / Filter
- Waste container51 l
- Container emptyingmanual
- Discharge height-
- Lifting load, max.-
- FilterPanel filter
- Filter size2,68 m²
- Filter shakermanual
Traction
- Mode of driveRear-wheel drive
- Motor-
- Rated power-
- Speed, max.4 km/h
- Climbing abiltiy, emtpy / full load18 %
Ride-on
natascha.burger2024-12-16T11:09:32+01:00
AKS 70|BM 95
- Theoretical coverage max.7315 m²/h
- Working width max.1330 mm
- Suctionyes
- Tractionback wheel
Technical key data
- L x W x H1460 x 1150 x 1220 mm
- Working width w/o side brushes700 mm
- with 1 side brush990 mm
- with 2 side brushes- / 1330 mm
- Theoretical coverage max.5445 / 7315 m²/h
- Noise level71 dB(A)
- Empty weight w/o battery215 kg
- Operating weight360 kg
Batteries / Electrical Data
- Rated voltage24 V
- Rated power990 W
- Capacity, Gel min.-
- Capacity, Gel max.180 Ah 5
Waste container / Filter
- Waste container95 l
- Container emptyingmanual
- Discharge height-
- Lifting load, max.-
- FilterCartridge filter
- Filter size6 m²
- Filter shakerelectrical
Traction
- Mode of driveRear-wheel drive
- Motor-
- Rated power-
- Speed, max.5,5 km/h
- Climbing abiltiy, emtpy / full load18 / 15 %
natascha.burger2024-12-16T11:13:57+01:00

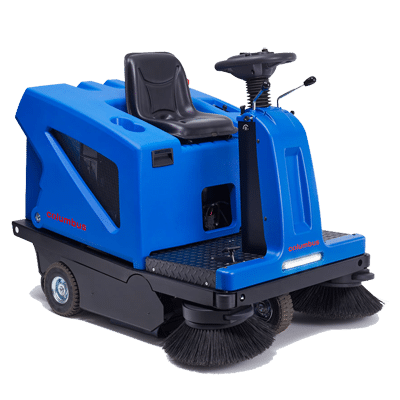

AKS 70|VM 95
- Theoretical coverage max.7315 m²/h
- Working width max.1330 mm
- Suctionyes
- Tractionfront wheel
Technical key data
- L x W x H1460 x 1150 x 1220 mm
- Working width w/o side brushes700 mm
- with 1 side brush990 mm
- with 2 side brushes1330 mm
- Theoretical coverage max.7315 m²/h
- Noise level78 dB(A)
- Empty weight w/o battery340 kg
- Operating weight415 kg
Batteries / Electrical Data
- Rated voltage-
- Rated power-
- Capacity, Gel min.-
- Capacity, Gel max.-
Waste container / Filter
- Waste container95 l
- Container emptyingmanual
- Discharge height-
- Lifting load, max.-
- FilterCartridge filter
- Filter size6 m²
- Filter shakerelectrical
Traction
- Mode of drivehydraulic, front-wheel drive
- MotorHONDA, gasoline
- Rated power3,6 kW
- Speed, max.5,5 km/h
- Climbing abiltiy, emtpy / full load18 / 15 %
natascha.burger2024-12-16T11:19:04+01:00
AKS 70|BM 95 H
- Theoretical coverage max.6875 m²/h
- Working width max.1250 mm
- Suctionyes
- Tractionback wheel
Technical key data
- L x W x H1360 x 960 x 1180 mm
- Working width w/o side brushes700 mm
- with 1 side brush- / 950 mm
- with 2 side brushes1250 mm
- Theoretical coverage max.5225 / 6875 m²/h
- Noise level67,7 dB(A)
- Empty weight w/o battery312 kg
- Operating weight432 kg
Batteries / Electrical Data
- Rated voltage24 V
- Rated power1500 W
- Capacity, Gel min.-
- Capacity, Gel max.180 Ah 5
Waste container / Filter
- Waste container95 l
- Container emptyingmanual
- Discharge height1300 mm
- Lifting load, max.35 kg
- FilterCartridge filter
- Filter size5 m²
- Filter shakerelectrical
Traction
- Mode of driveRear-wheel drive
- Motor-
- Rated Power-
- Speed, max.5,5 km/h
- Climbing abiltiy, emtpy / full load12 / 10 %
natascha.burger2024-12-16T11:23:41+01:00
AKS 85|BM 120
- Theoretical coverage max.8700 m²/h
- Working width max.1450 mm
- Suctionyes
- Tractionfront wheel
Technical key data
- L x W x H1750 x 1150 x 1550 mm
- Working width w/o side brushes850 mm
- with 1 side brush1200 mm
- with 2 side brushes1450 mm
- Theoretical coverage max.8700 m²/h
- Noise level-
- Empty weight w/o battery383 kg
- Operating weight746 kg
Batteries / Electrical Data
- Rated voltage36 V
- Rated power1720 W
- Capacity, Gel min.-
- Capacity, Gel max.180 Ah 5
Waste container / Filter
- Waste container120 l
- Container emptyingmanual
- Discharge height-
- Lifting load, max.-
- FilterCartridge filter
- Filter size6 m²
- Filter shakerelectrical
Traction
- Mode of driveFront-wheel drive
- Motor-
- Rated Power1000 W
- Speed, max.6 km/h
- Climbing abiltiy, emtpy / full load16 / 12 %
natascha.burger2024-12-16T11:35:57+01:00

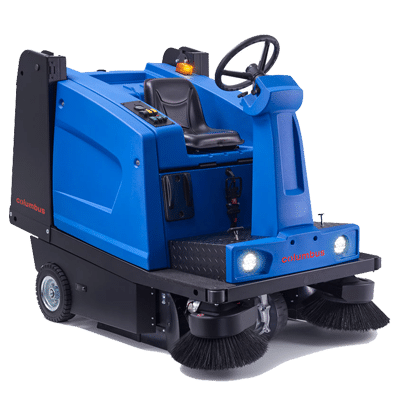

AKS 85|BM 150 H
- Theoretical coverage max.8700 m²/h
- Working width max.1450 mm
- Suctionyes
- Tractionfront wheel
Technical key data
- L x W x H1750 x 1150 x 1550 mm
- Working width w/o side brushes850 mm
- with 1 side brush1200 mm
- with 2 side brushes1450 mm
- Theoretical coverage max.8700 m²/h
- Noise level-
- Empty weight w/o battery535 kg
- Operating weight898 kg
Batteries / Electrical Data
- Rated voltage36 V
- Rated power3720 W
- Capacity, Gel min.-
- Capacity, Gel max.240 Ah 5
Waste container / Filter
- Waste container150 l
- Container emptyinghydraulic
- Discharge height1500 mm
- Lifting load, max.95 kg
- FilterCartridge filter
- Filter size6 m²
- Filter shakerelectrical
Traction
- Mode of driveFront-wheel drive
- Motor-
- Rated Power1000 W
- Speed, max.6 km/h
- Climbing abiltiy, emtpy / full load16 / 12 %
