Sweepers

Walk-behind and ride-on

Walk-behind

2024-12-04T10:15:37+01:00

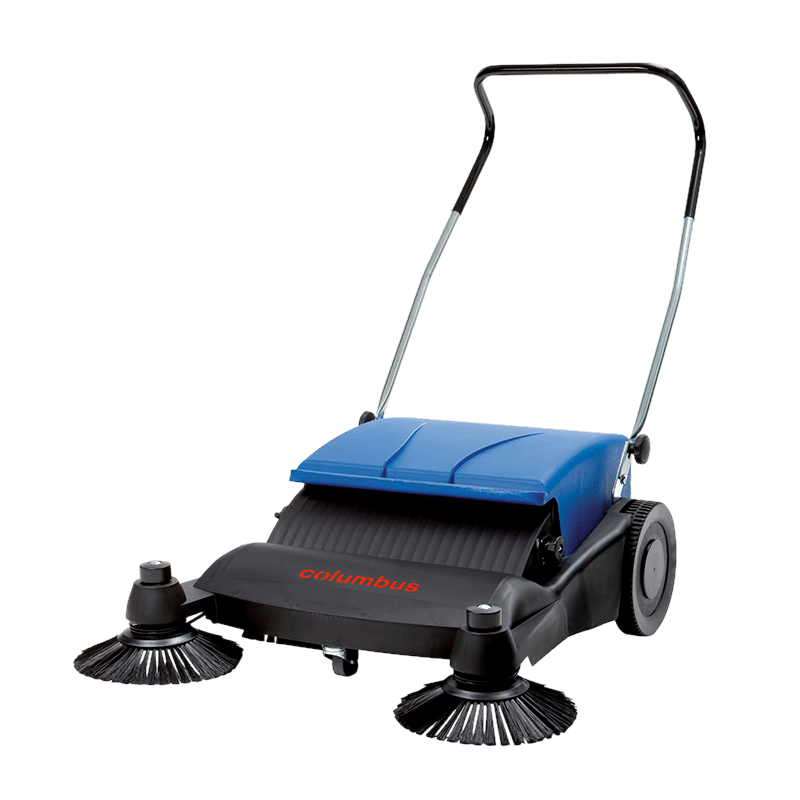

Sweeper K8040

K 80|40

  • Theoretical coverage max.2800 m²/h
  • Working width800 mm
  • Suctionno
Technical key data
  • L x W x H800 x 660 x 330 mm
  • Sweeping principleoverthrow
  • Working width w/o side brushes470 mm
  • with 1 side brush–
  • with 2 side brushes800 mm
  • Empty weight w/o battery14 kg
  • Operating weight-
Traction / drive
  • Mode of drivemanual
  • -
  • Performance-
Suction
  • Dust suctionno
  • Waste container40 l
Filter
  • Filter size-
  • Shaker-
2024-12-16T10:57:12+01:00

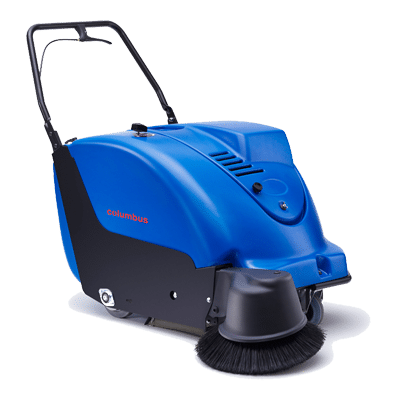

KM 50|BM 40

  • Theoretical coverage max.3120 m²/h
  • Working width max.780 mm
  • Suctionyes
Technical key data
  • L x W x H1285 x 750 x 965 mm
  • Working width w/o side brushes510 mm
  • with 1 side brush780 mm
  • with 2 side brushes–
  • Theoretical coverage max.3120 m²/h
  • Noise level<70 dB(A)
  • Empty weight w/o battery79 kg
  • Operating weight117 kg
Batteries / Electrical Data
  • Rated voltage12 V
  • Rated power280 W
  • Capacity, Gel min.76 Ah 5
  • Capacity, Gel max.105 Ah 5
Waste container / Filter
  • Waste container40 l
  • Container emptyingmanuell
  • Discharge height-
  • Lifting load, max.-
  • FilterPanel filter
  • Filter size2,25 m²
  • Filter shakermanual
Traction
  • Mode of driveRear-wheel drive
  • Motor-
  • Rated power-
  • Speed, max.4 km/h
  • Climbing abiltiy, emtpy / full load18 %
2024-12-16T11:04:47+01:00

KS 60|BM 50

  • Theoretical coverage max.3480 m²/h
  • Working width max.870 mm
  • Suctionyes
Technical key data
  • L x W x H1380 x 840 x 980 mm
  • Working width w/o side brushes600 mm
  • with 1 side brush870 mm
  • with 2 side brushes–
  • Theoretical coverage max.3480 m²/h
  • Noise level<70 dB(A)
  • Empty weight w/o battery101 kg
  • Operating weight139 kg
Batteries / Electrical Data
  • Rated voltage12 V
  • Rated power280 W
  • Capacity, Gel min.76 Ah 5
  • Capacity, Gel max.105 Ah 5
Waste container / Filter
  • Waste container51 l
  • Container emptyingmanual
  • Discharge height-
  • Lifting load, max.-
  • FilterPanel filter
  • Filter size2,68 m²
  • Filter shakermanual
Traction
  • Mode of driveRear-wheel drive
  • Motor-
  • Rated power-
  • Speed, max.4 km/h
  • Climbing abiltiy, emtpy / full load18 %

Ride-on

2024-12-16T11:09:34+01:00

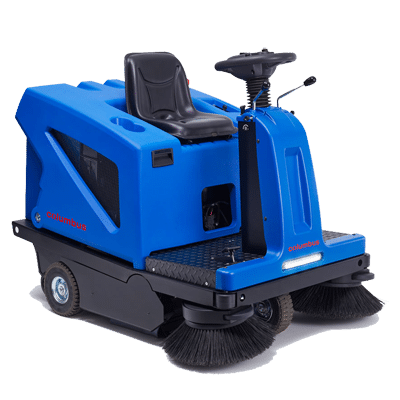

AKS 70|BM 95

  • Theoretical coverage max.7315 m²/h
  • Working width max.1330 mm
  • Suctionyes
  • Tractionback wheel
Technical key data
  • L x W x H1460 x 1150 x 1220 mm
  • Working width w/o side brushes700 mm
  • with 1 side brush990 mm
  • with 2 side brushes- / 1330 mm
  • Theoretical coverage max.5445 / 7315 m²/h
  • Noise level71 dB(A)
  • Empty weight w/o battery215 kg
  • Operating weight360 kg
Batteries / Electrical Data
  • Rated voltage24 V
  • Rated power990 W
  • Capacity, Gel min.-
  • Capacity, Gel max.180 Ah 5
Waste container / Filter
  • Waste container95 l
  • Container emptyingmanual
  • Discharge height-
  • Lifting load, max.-
  • FilterCartridge filter
  • Filter size6 m²
  • Filter shakerelectrical
Traction
  • Mode of driveRear-wheel drive
  • Motor-
  • Rated power-
  • Speed, max.5,5 km/h
  • Climbing abiltiy, emtpy / full load18 / 15 %
2024-12-16T11:14:00+01:00

AKS 70|VM 95

  • Theoretical coverage max.7315 m²/h
  • Working width max.1330 mm
  • Suctionyes
  • Tractionfront wheel
Technical key data
  • L x W x H1460 x 1150 x 1220 mm
  • Working width w/o side brushes700 mm
  • with 1 side brush990 mm
  • with 2 side brushes1330 mm
  • Theoretical coverage max.7315 m²/h
  • Noise level78 dB(A)
  • Empty weight w/o battery340 kg
  • Operating weight415 kg
Batteries / Electrical Data
  • Rated voltage-
  • Rated power-
  • Capacity, Gel min.-
  • Capacity, Gel max.-
Waste container / Filter
  • Waste container95 l
  • Container emptyingmanual
  • Discharge height-
  • Lifting load, max.-
  • FilterCartridge filter
  • Filter size6 m²
  • Filter shakerelectrical
Traction
  • Mode of drivehydraulic, front-wheel drive
  • MotorHONDA, gasoline
  • Rated power3,6 kW
  • Speed, max.5,5 km/h
  • Climbing abiltiy, emtpy / full load18 / 15 %
2024-12-16T11:19:06+01:00

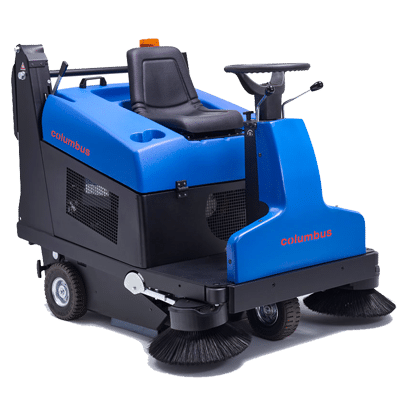

AKS 70|BM 95 H

  • Theoretical coverage max.6875 m²/h
  • Working width max.1250 mm
  • Suctionyes
  • Tractionback wheel
Technical key data
  • L x W x H1360 x 960 x 1180 mm
  • Working width w/o side brushes700 mm
  • with 1 side brush- / 950 mm
  • with 2 side brushes1250 mm
  • Theoretical coverage max.5225 / 6875 m²/h
  • Noise level67,7 dB(A)
  • Empty weight w/o battery312 kg
  • Operating weight432 kg
Batteries / Electrical Data
  • Rated voltage24 V
  • Rated power1500 W
  • Capacity, Gel min.-
  • Capacity, Gel max.180 Ah 5
Waste container / Filter
  • Waste container95 l
  • Container emptyingmanual
  • Discharge height1300 mm
  • Lifting load, max.35 kg
  • FilterCartridge filter
  • Filter size5 m²
  • Filter shakerelectrical
Traction
  • Mode of driveRear-wheel drive
  • Motor-
  • Rated Power-
  • Speed, max.5,5 km/h
  • Climbing abiltiy, emtpy / full load12 / 10 %
2024-12-16T11:23:39+01:00

AKS 85|BM 120

  • Theoretical coverage max.8700 m²/h
  • Working width max.1450 mm
  • Suctionyes
  • Tractionfront wheel
Technical key data
  • L x W x H1750 x 1150 x 1550 mm
  • Working width w/o side brushes850 mm
  • with 1 side brush1200 mm
  • with 2 side brushes1450 mm
  • Theoretical coverage max.8700 m²/h
  • Noise level-
  • Empty weight w/o battery383 kg
  • Operating weight746 kg
Batteries / Electrical Data
  • Rated voltage36 V
  • Rated power1720 W
  • Capacity, Gel min.-
  • Capacity, Gel max.180 Ah 5
Waste container / Filter
  • Waste container120 l
  • Container emptyingmanual
  • Discharge height-
  • Lifting load, max.-
  • FilterCartridge filter
  • Filter size6 m²
  • Filter shakerelectrical
Traction
  • Mode of driveFront-wheel drive
  • Motor-
  • Rated Power1000 W
  • Speed, max.6 km/h
  • Climbing abiltiy, emtpy / full load16 / 12 %
2024-12-16T11:35:58+01:00

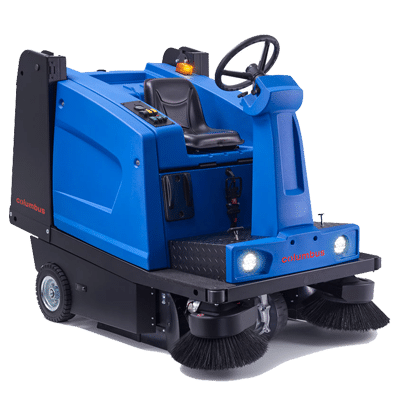

AKS 85|BM 150 H

  • Theoretical coverage max.8700 m²/h
  • Working width max.1450 mm
  • Suctionyes
  • Tractionfront wheel
Technical key data
  • L x W x H1750 x 1150 x 1550 mm
  • Working width w/o side brushes850 mm
  • with 1 side brush1200 mm
  • with 2 side brushes1450 mm
  • Theoretical coverage max.8700 m²/h
  • Noise level-
  • Empty weight w/o battery535 kg
  • Operating weight898 kg
Batteries / Electrical Data
  • Rated voltage36 V
  • Rated power3720 W
  • Capacity, Gel min.-
  • Capacity, Gel max.240 Ah 5
Waste container / Filter
  • Waste container150 l
  • Container emptyinghydraulic
  • Discharge height1500 mm
  • Lifting load, max.95 kg
  • FilterCartridge filter
  • Filter size6 m²
  • Filter shakerelectrical
Traction
  • Mode of driveFront-wheel drive
  • Motor-
  • Rated Power1000 W
  • Speed, max.6 km/h
  • Climbing abiltiy, emtpy / full load16 / 12 %
