Walk-behind
RA 55|B 60
RA 55|B 60
Overview

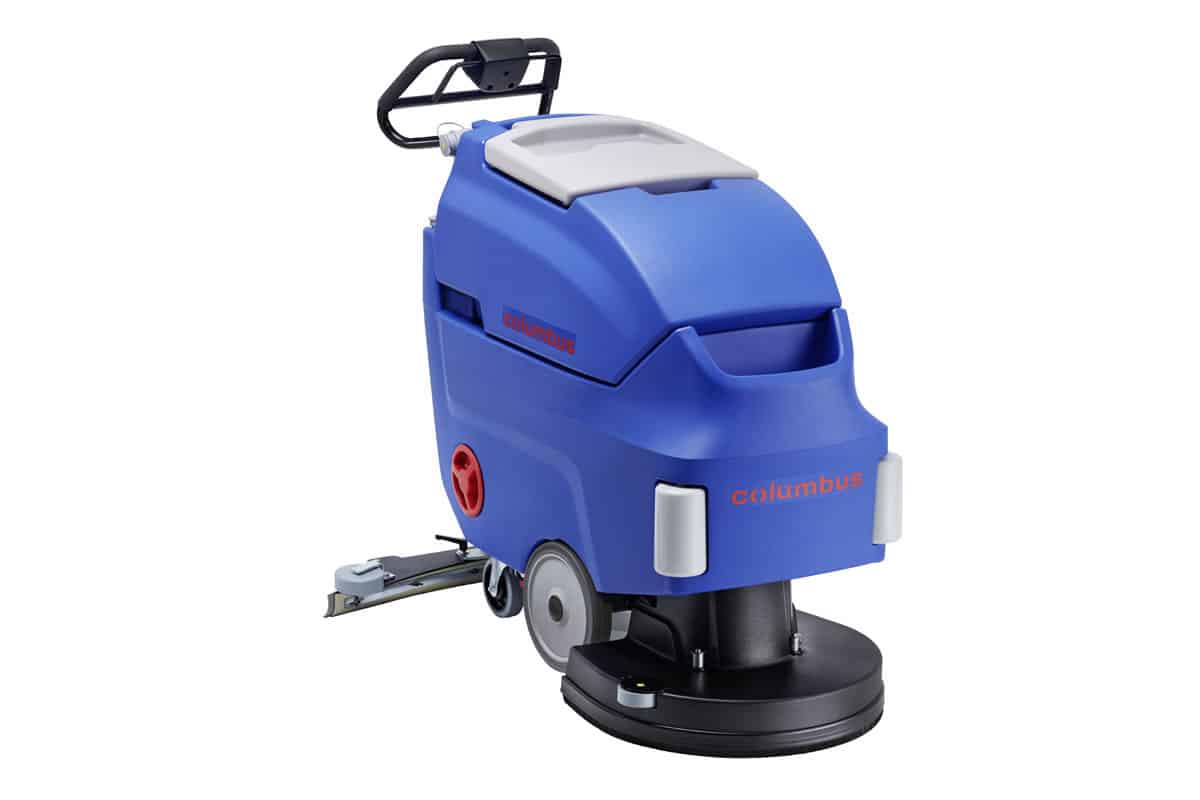

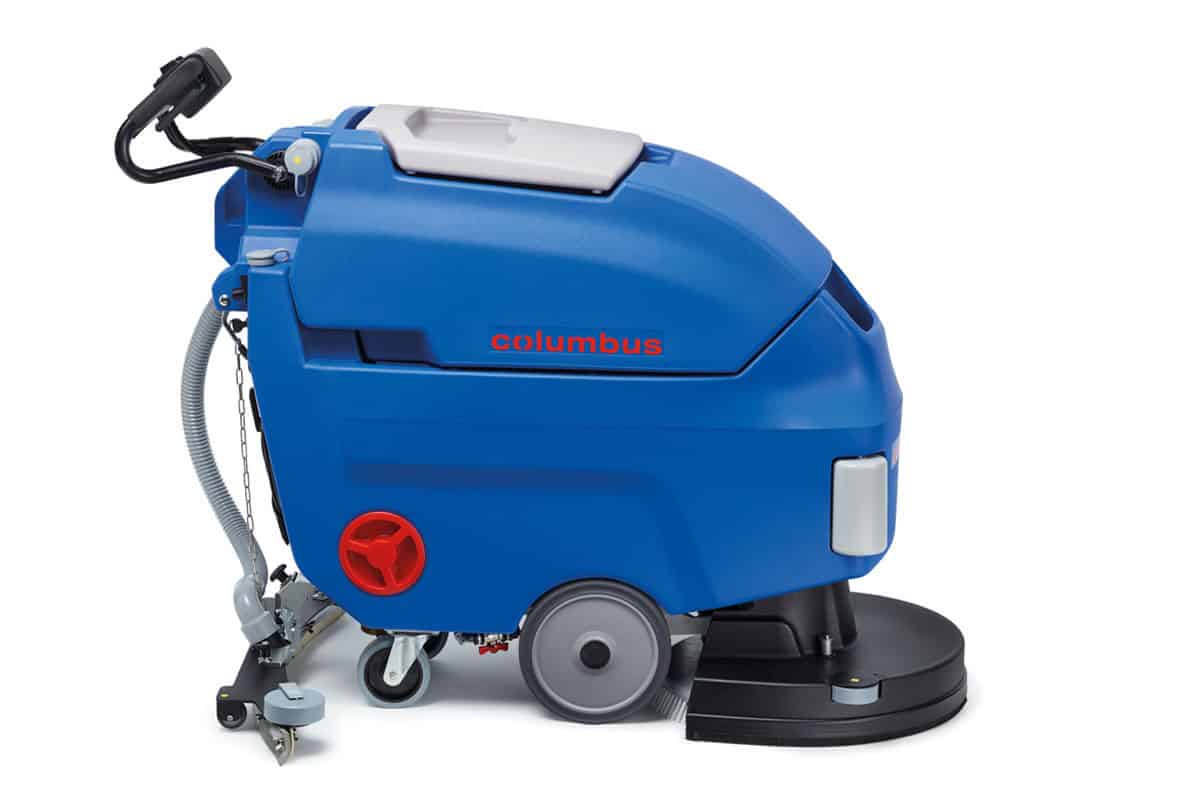

Equipped with a working width of 55 cm, the affordable entry-level model of our 60-liter machines is a typical columbus model. A real hard worker that has everything it really needs: without traction motor but with powerful drive force: first-class cleaning results, maximum reliability, easy handling and top value for money.
Technical key data
RA 55|B 60
Product highlights
Very robust mechanics
Only truly durable machines are also truly green.
Superb suction
Guarantees streak-free floors that can be walked on immediately after cleaning.
Clean right up to the edge
Perfect cleaning result, right up to the wall.
Quick Stop as standard
The brush motor and water supply stop automatically when you let go of the handle.
Easy operation
Effortless and extremely easy to operate even in narrow aisles and on surfaces with frequent corners.
Automatic brush holder
Change tools quickly and easily at the touch of a button.
Ultra-quiet cleaning at only 60 dB (A) in noise-sensitive areas.
The electronic water-dispensing system supplies exactly the right volume of water.
Well thought-through design provides quick and easy access to all vital machine components.

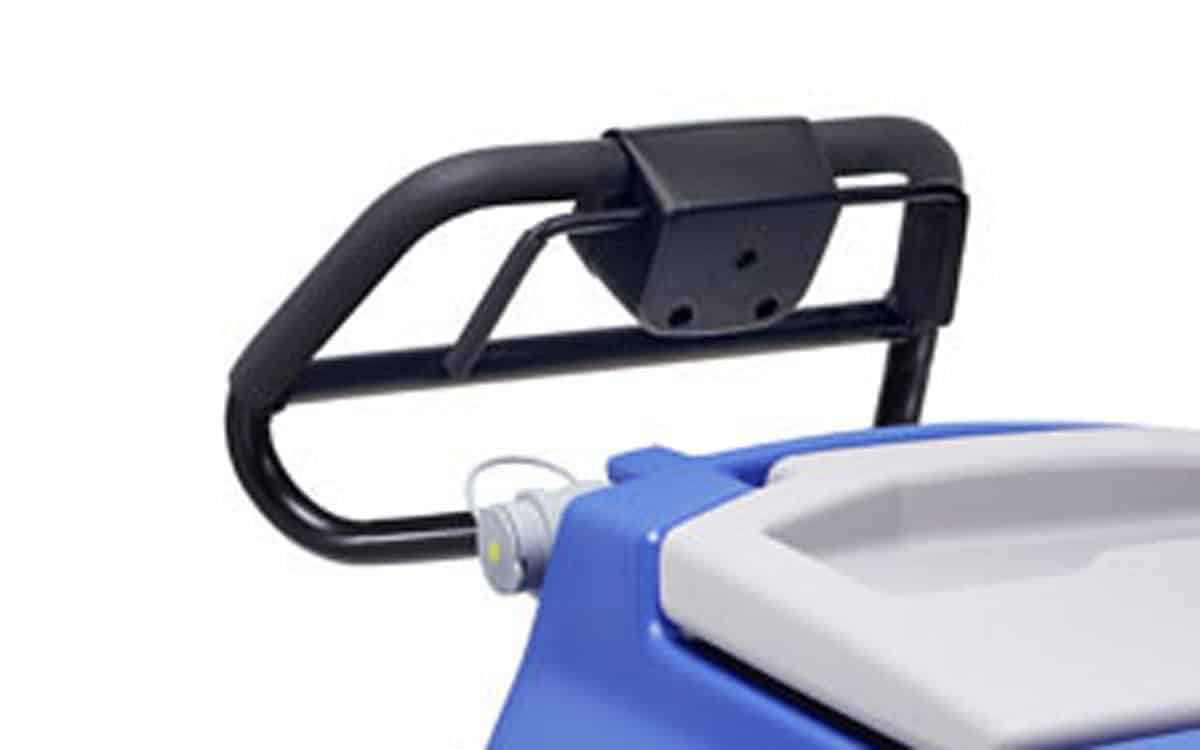

Easily adjustable steering handle, convenient for every operator.
The machine can be transported in any standard lift.
Service markings simplify day-to-day care of machines.
Quality from Germany.
RA 55|B 60
Optional equipment
V-Eraser mop and wipe disinfection
WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.
noBAC®
With antibacterial tanks for all applications with high hygienic requirements.
ECD – electronic Chemical dosing system
Only as much chemicals as absolutely necessary; this is good for the environment and the budget.
Double protection roller set
More protection for site and machine.
Tool board
Working tools for manual cleaning always at hand.
Integrated charger
Charge the battery anywhere, with the high-quality integrated charger.
RA 55|B 60
Technical data
| Technical key data | |
|---|---|
| L x W x H | 1265 x 680 x 1005 mm |
| Working width | 550 mm |
| Suction width | 850 mm |
| Theoretical coverage max. | 2200 m²/h |
| Noise level | 60 dB (A) |
| Empty weight | 85 kg |
| Operating weight | 220 kg (105 Ah 5) |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 24 V |
| Power max. | 990 W |
| Power cable | – |
| Capacity wet | 110 Ah 5 |
| Capacity gel | 105 Ah 5 |
| Tank | |
|---|---|
| Solution tank capacity | 60 l |
| Recovery tank capacity | 64 l |
| Motors | |
|---|---|
| Suction: low pressure | 110 mbar |
| Suction: air flow | 32 l/s |
| Traction: power | – |
| Traction: speed | – |
| Brushes and pad holders | |
|---|---|
| Number | 1 |
| Speed | 180 rpm |
| Brush pressure | 25 kg |
