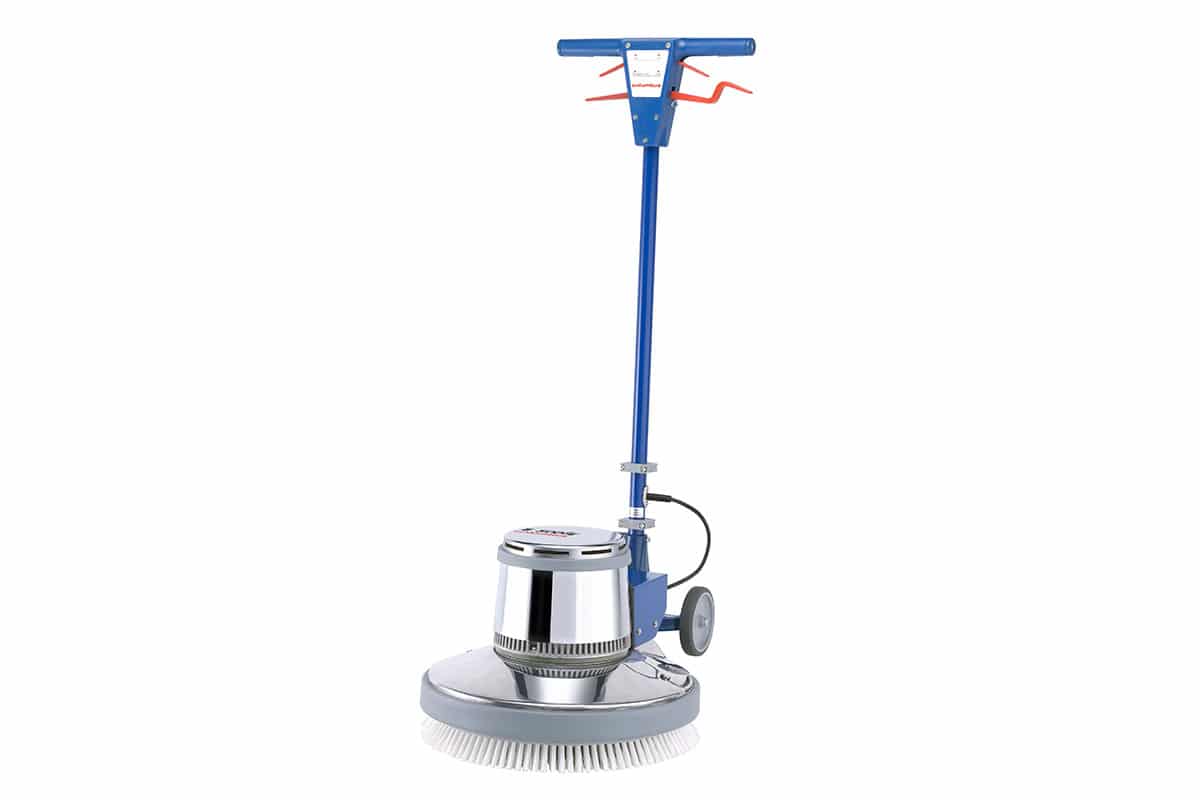

Single disc machine
E 500|S
E 500|S
Overview
Low-speed single disc machines from columbus are true classics. For more than 70 years we have been developing and manufacturing single disc machines in Stuttgart, which always deliver excellent cleaning results in daily hard continuous use. This single disc machine in an all-metal design and equipped with a 1800 W motor is extremely robust and suitable for demanding tasks on large surfaces and in industrial buildings. This low-speed machine provides even power transfer over the entire working width thanks to the planetary drive with three non-wear, helically toothed planetary gears, and guarantees smooth running and easy guidance of the machine.
Technical key data
E 500|S
Product highlights
Infinitely adjustable steering handle
Work safely and ergonomically with an infinitely adjustable steering handle.
Ultra-quiet
The machine operates so quietly that it can even be used during working hours.

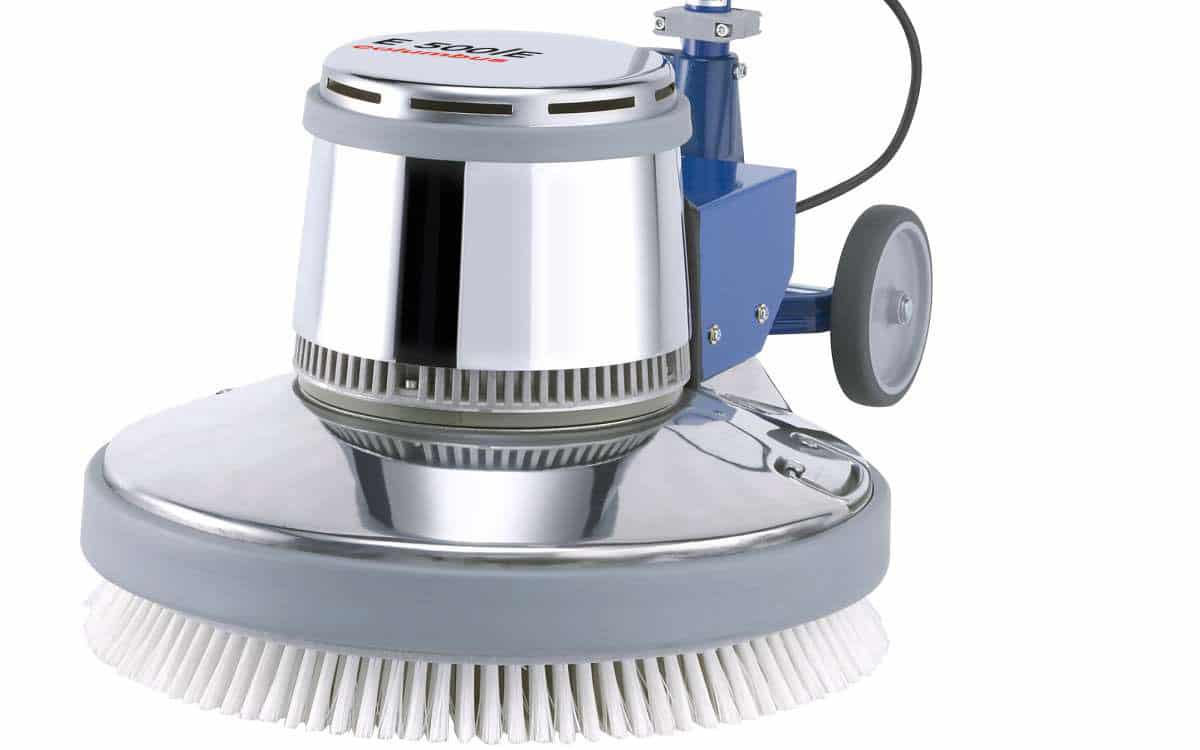

Solid metal construction
Robust cast aluminium housing.
Designed to be versatile
When fitted with the appropriate accessories, this machine can handle a multitude of different cleaning tasks.
Made in Germany
Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.
Planetary gearing
The maintenance-free planetary gearing ensures ultra-quiet, reliable operation.
E 500|S
Technical data
| Technical key data | |
|---|---|
| L x W x H | 480 x 630 x 1215 mm |
| Working width | 500 mm |
| Ground clearance max. | 150 mm |
| Working height max. | 345 mm |
| Noise level | 63 db (A) |
| Weight | 50 kg |
| Electrical data | |
|---|---|
| Rated voltage | 230 V / 50 Hz |
| Power total | 1800 W |
| Power heater fan | – |
| Driving motor | – |
| Mains cable | 12 m |
| Brushes and pad holders | |
|---|---|
| Speed | 140 rpm |
