Ride-on
ARA 85|BM 120
ARA 85|BM 120
Overview

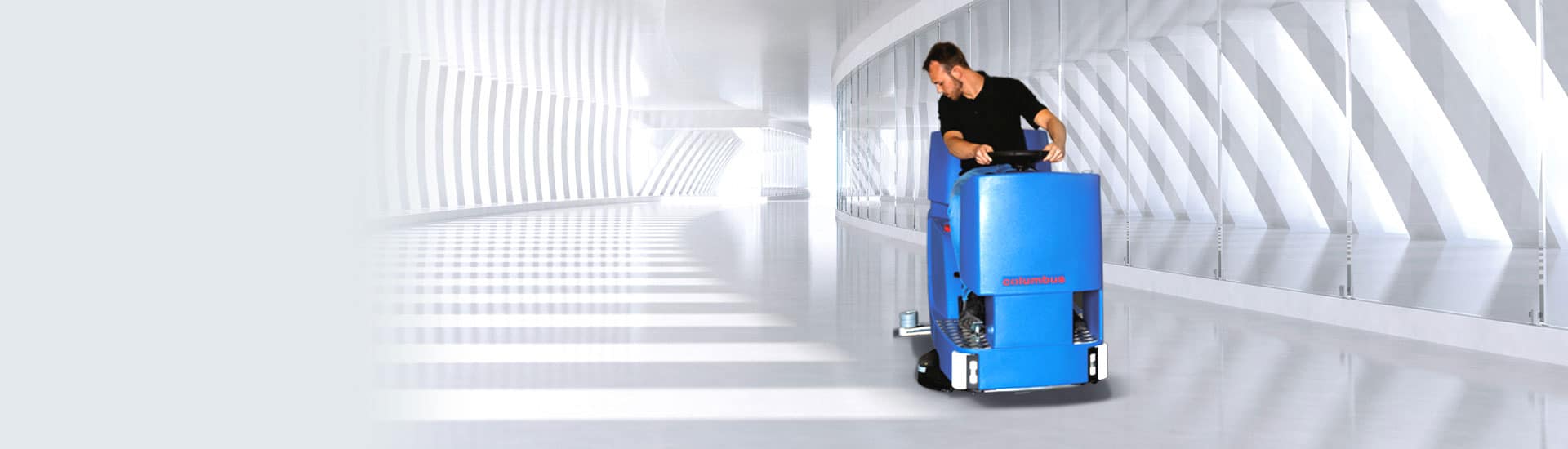

Greater efficiency per tank: this highly efficient ride-on scrubber dryer enables non-stop cleaning operations for two hours on just one tank. The proven details, such as the standard electronic water dosing system, the comfortable low access height and the automatic brush pick-up system ensure the high level of efficiency that is expected when working on large floor areas.
Technical key data
ARA 85|BM 120
Product highlights
Compact construction
Flat design and extendible steering handle make cleaning under furniture etc. easy.
Automatic brush holder
Change tools quickly and easily at the touch of a button.

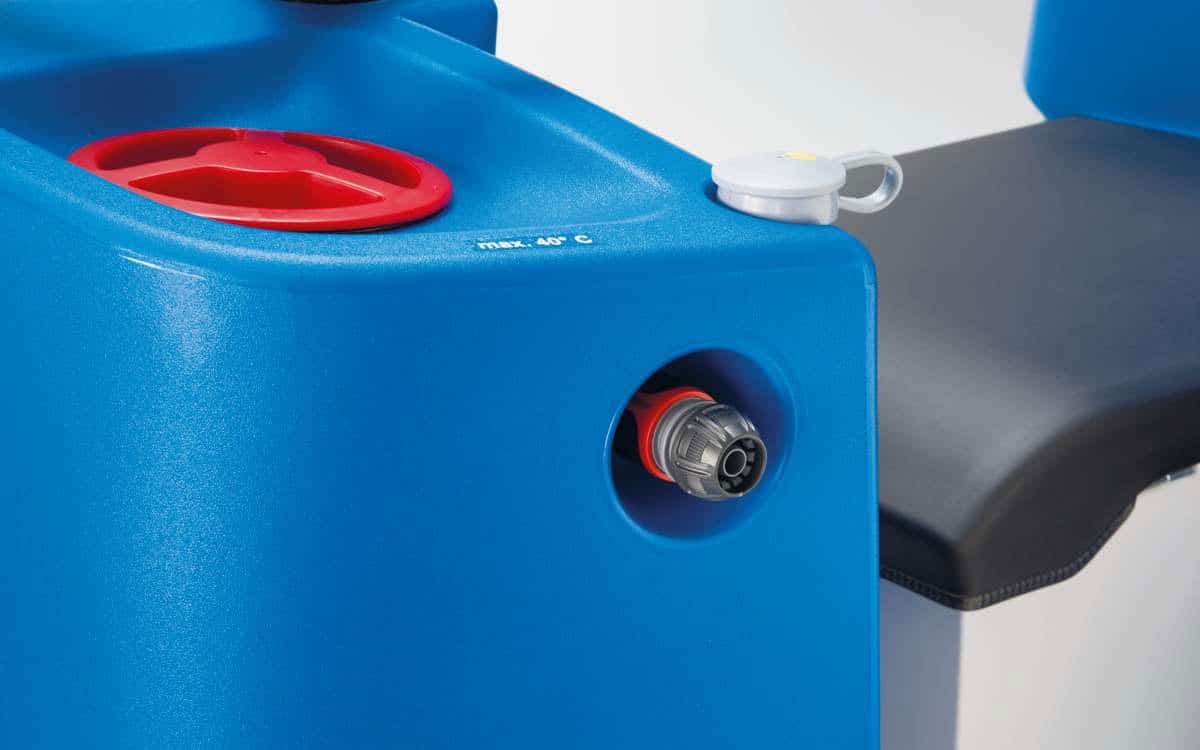

Quick-Fill function as standard
Clean water tank can be filled quickly and cleanly via the integrated system coupling.
Superb suction
Guarantees streak-free floors that can be walked on immediately after cleaning.
Optimum access height
Ideal if the operator has to step on and off frequently during long cleaning periods.

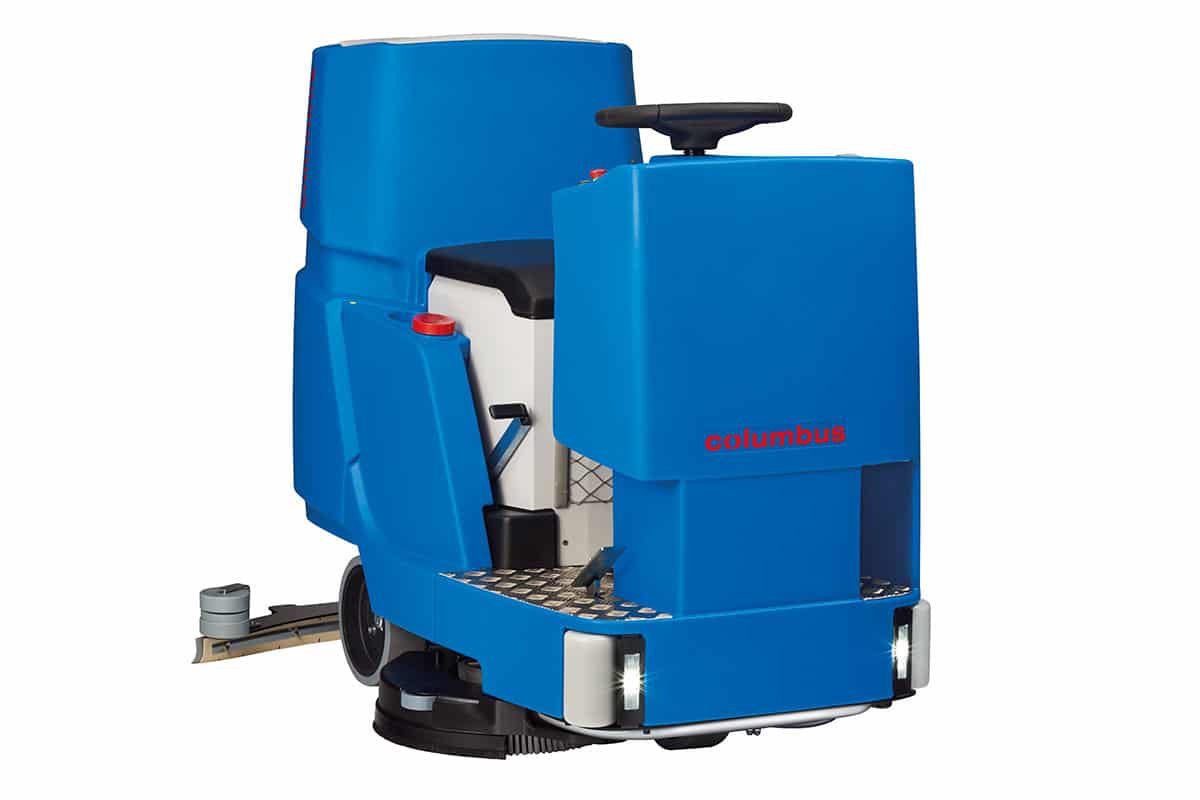

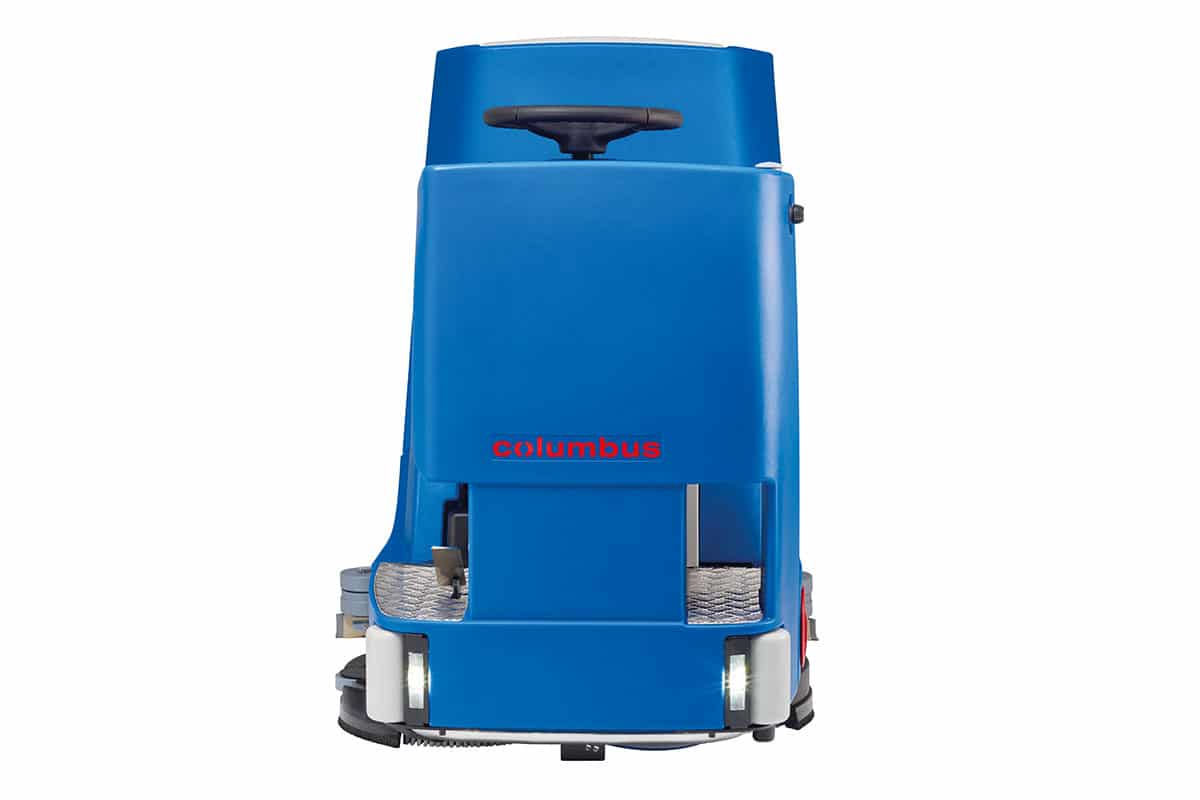

LED on the front
Safe while on the move: all-round visibility while working and when on the move.
Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.
The electronic water-dispensing system supplies exactly the right volume of water.

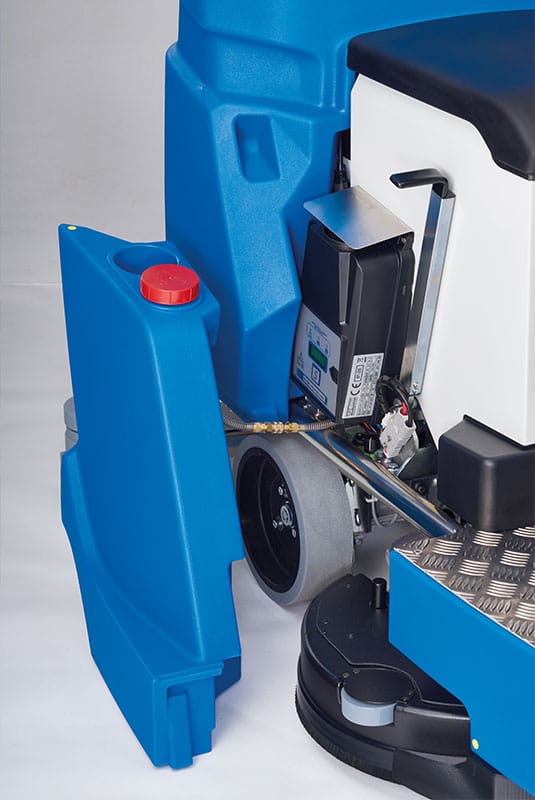

Large inspection openings enable both tanks to be cleaned thoroughly, with ease.
Optimum cleaning results on up to 12% slope.

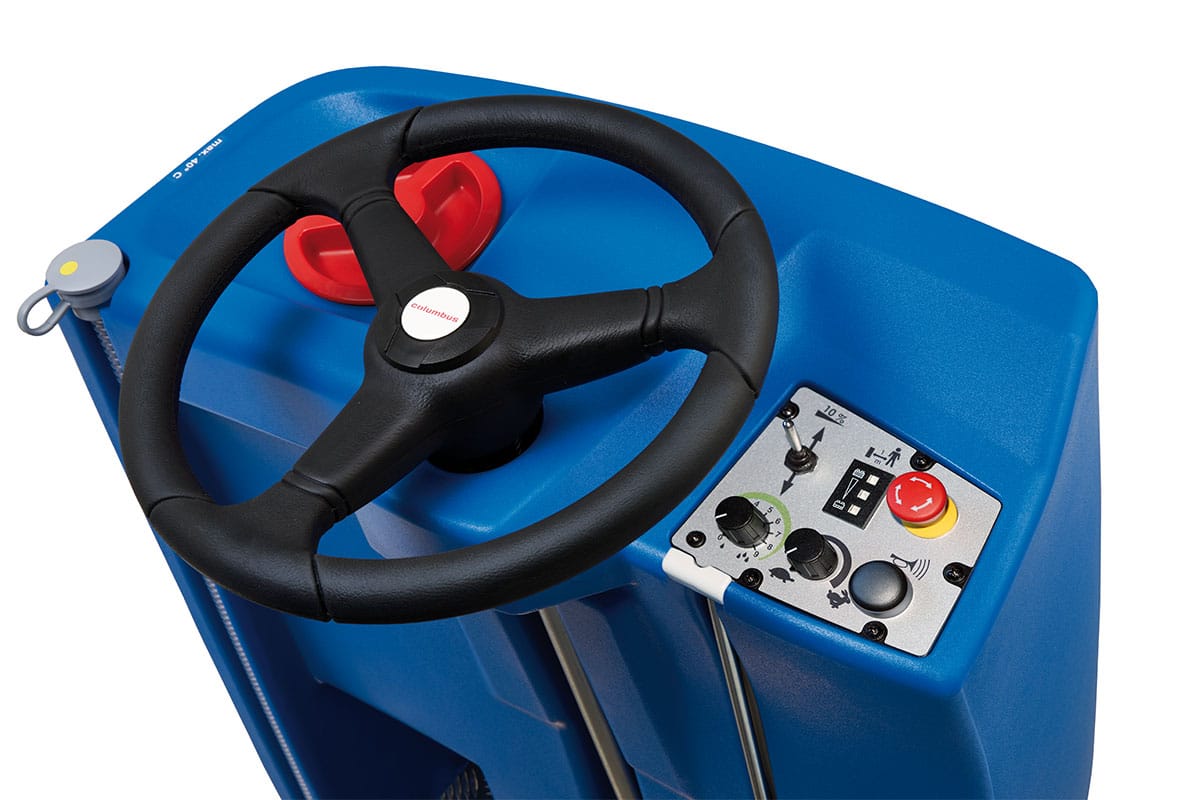

Fatigue-free riding position with good all-round visibility, ideal for longer operating periods and cleaning large areas.
Never without a mop.
Quality from Germany.
ARA 85|BM 120
Optional equipment
silent Version
For cleaning in noise-sensitive areas or during business hours.
ECD – electronic Chemical dosing system
Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

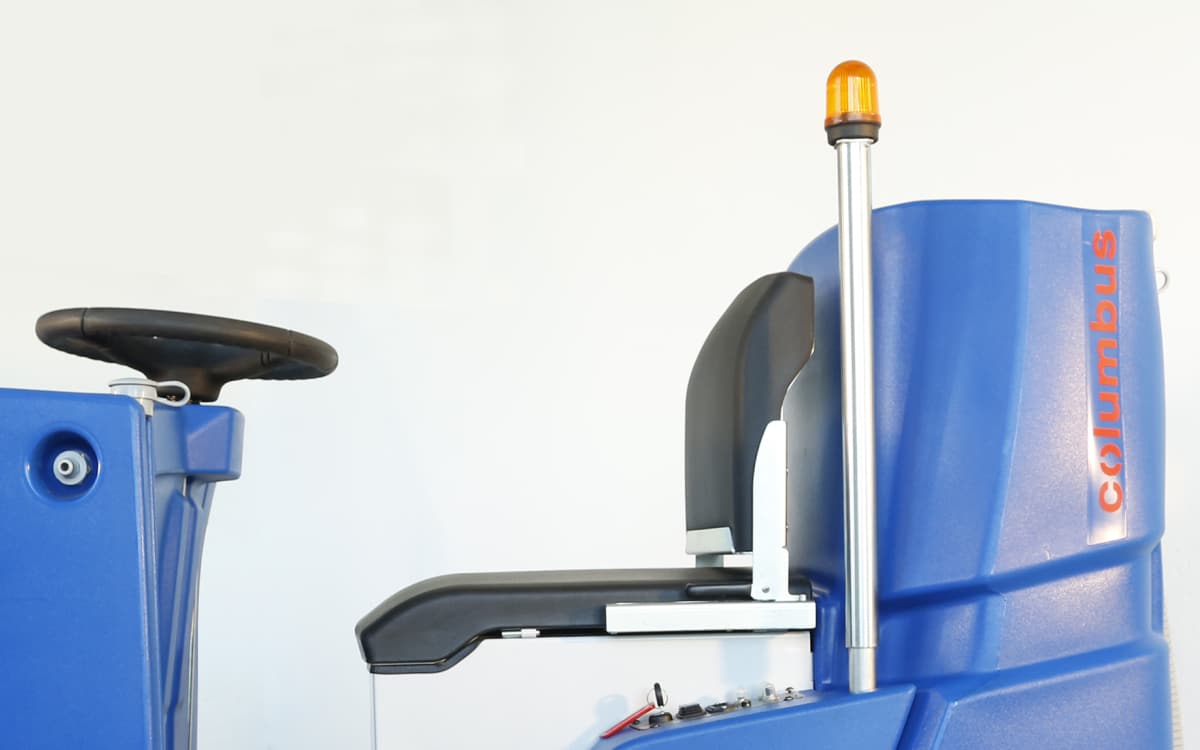

Security-Kit
Maximum operational safety due to rotating beacon.
Performance Kit
More cleaning performance for special site requirements.

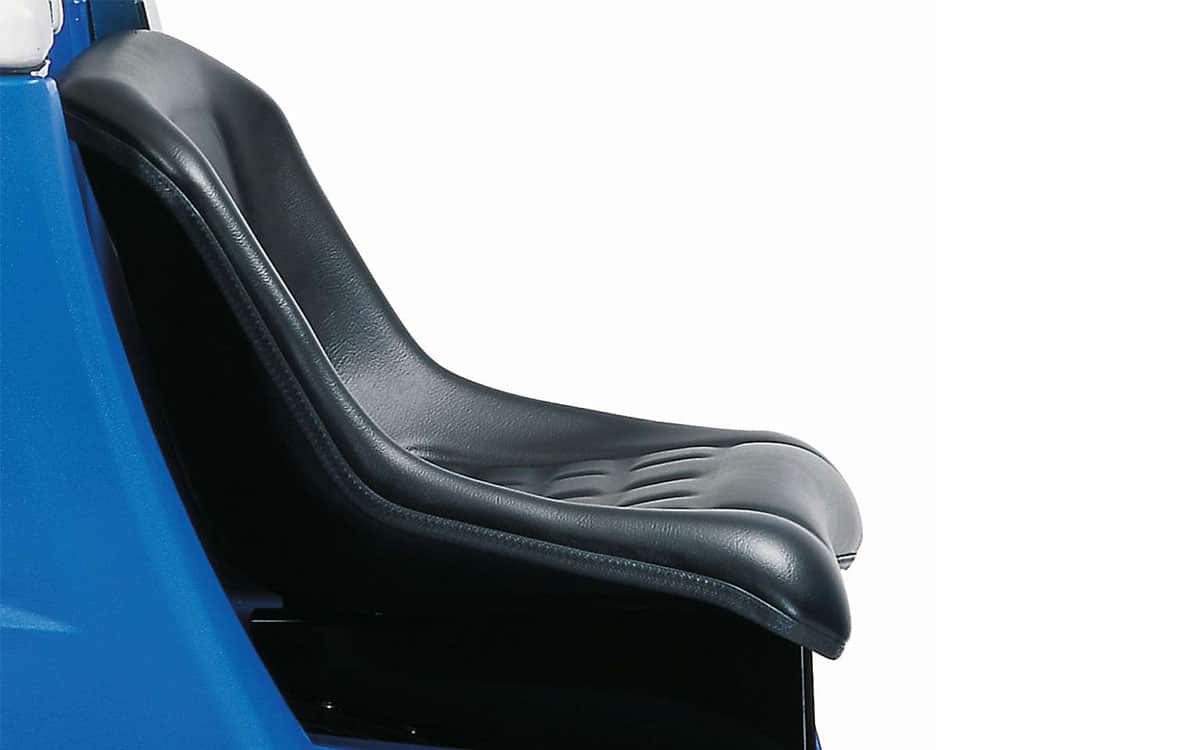

Driver’s seat „comfort plus“
More ergonomics and comfort for the driver during long working hours.
Integrated charger
Charge the battery anywhere, with the high-quality integrated charger.
ARA 85|BM 120
Technical data
| Technical key data | |
|---|---|
| L x W x H | 1490 x 880 x 1260 mm |
| Working width | 850 mm |
| Suction width | 980 mm |
| Theoretical coverage max. | 5100 m²/h |
| Noise level | 62/60* dB(A) |
| Empty weight | 209 kg |
| Operating weight | 596 kg (240 Ah 5) |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 24 V |
| Power max. | 2395 W |
| Capacity wet | on request |
| Capacity gel | 240 Ah 5* / 305 Ah 5 |
* with integrated charger
| Tank | |
|---|---|
| Solution tank capacity | 120 l |
| Recovery tank capacity | 140 l |
| Motors | |
|---|---|
| Suction: low pressure | 110 mbar |
| Suction: air flow | 32 l/s |
| Traction: power | 750 W |
| Traction: speed | 6 km/h |
| Brushes and pad holders | |
|---|---|
| Number | 2 |
| Speed | 180 rpm |
| Brush pressure | 36 kg |
