Ride-on
AKS 85|BM 150 H
AKS 85|BM 150 H
Overview
A large, robust ride-on sweeper with battery operation for professional sweeping results even under heavy-duty conditions. Two side brushes integrated as standard achieve a total working width of 1450 mm and achieve the best sweeping results on up to 11,500 m²/h. Two powerful suction motors achieve amazing suction results without whirling up dust. The large polyester cylinder filter with 6 m² filter surface can be cleaned with the electric filter shaker during operation. Pre-configured with a wide range of accessories, this sweeper can also be fitted with additional accessories.
Technical key data
AKS 85|BM 150 H
Product highlights

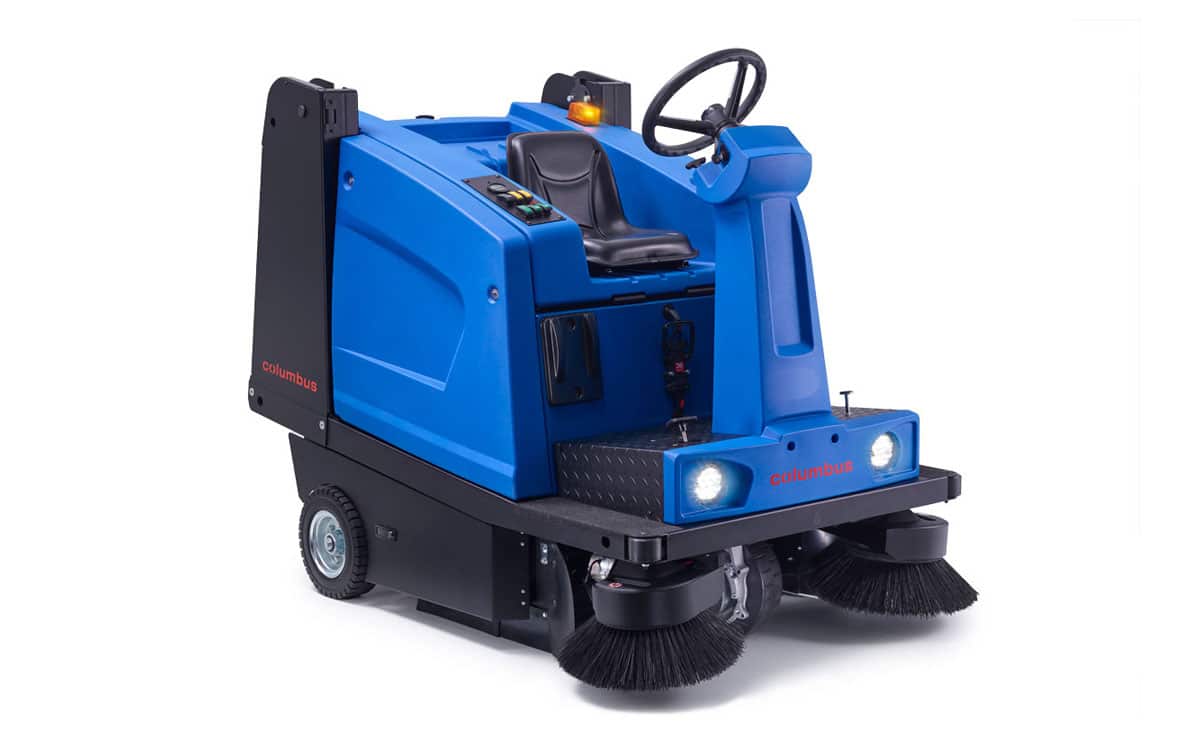

Compact design
Optimum overview on the working area and easy manoeuvrability.

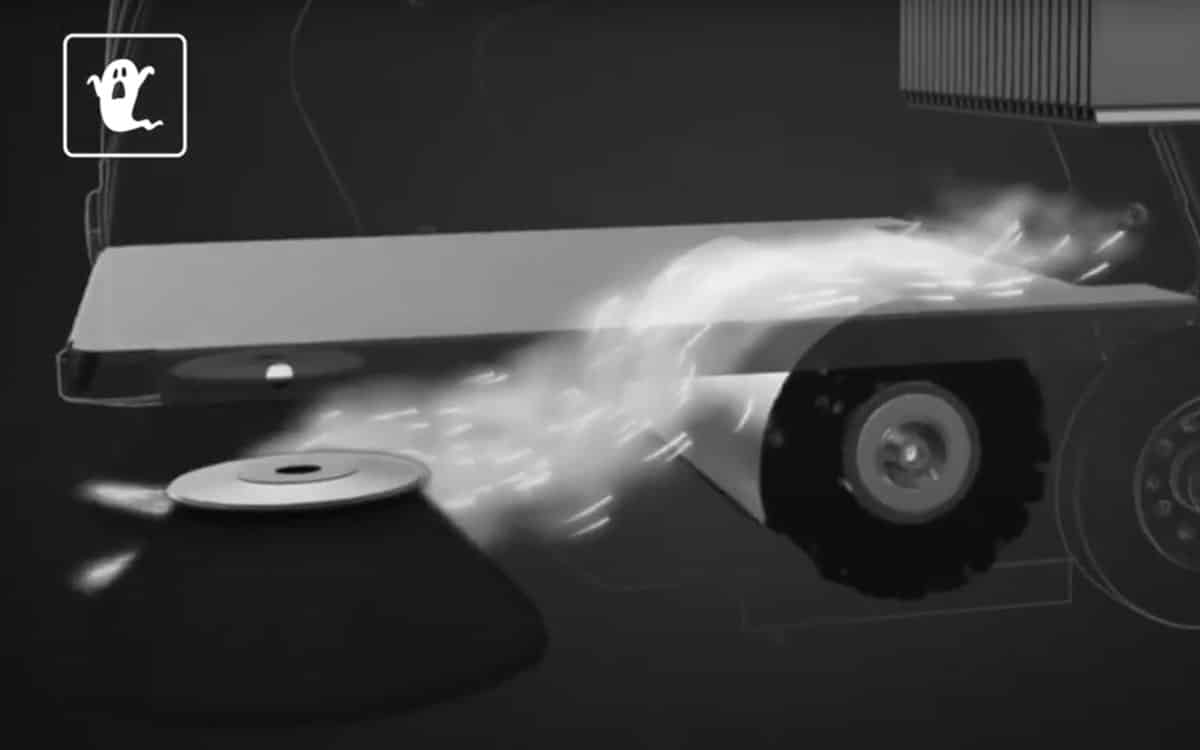

Dust Buster
Optimized airflow ensures dust-free aspiration right up to the side brushes.

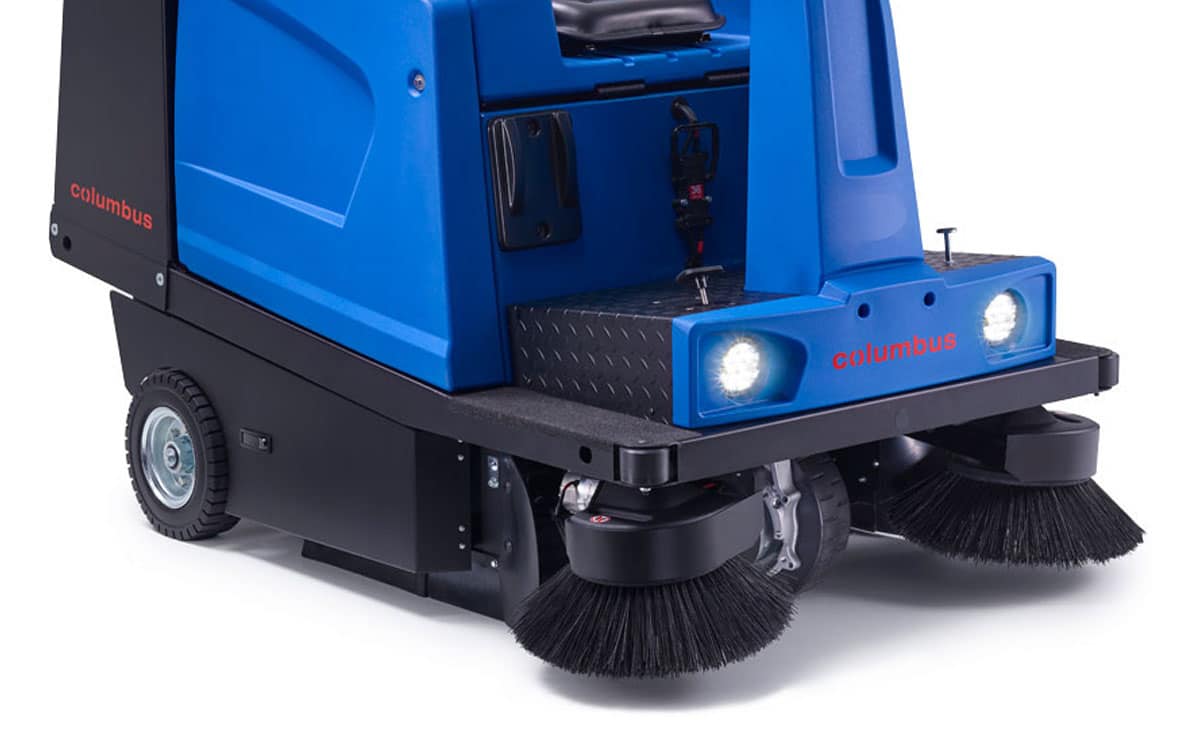

Robust construction
High quality steel construction: long lasting, sustainable, safe.

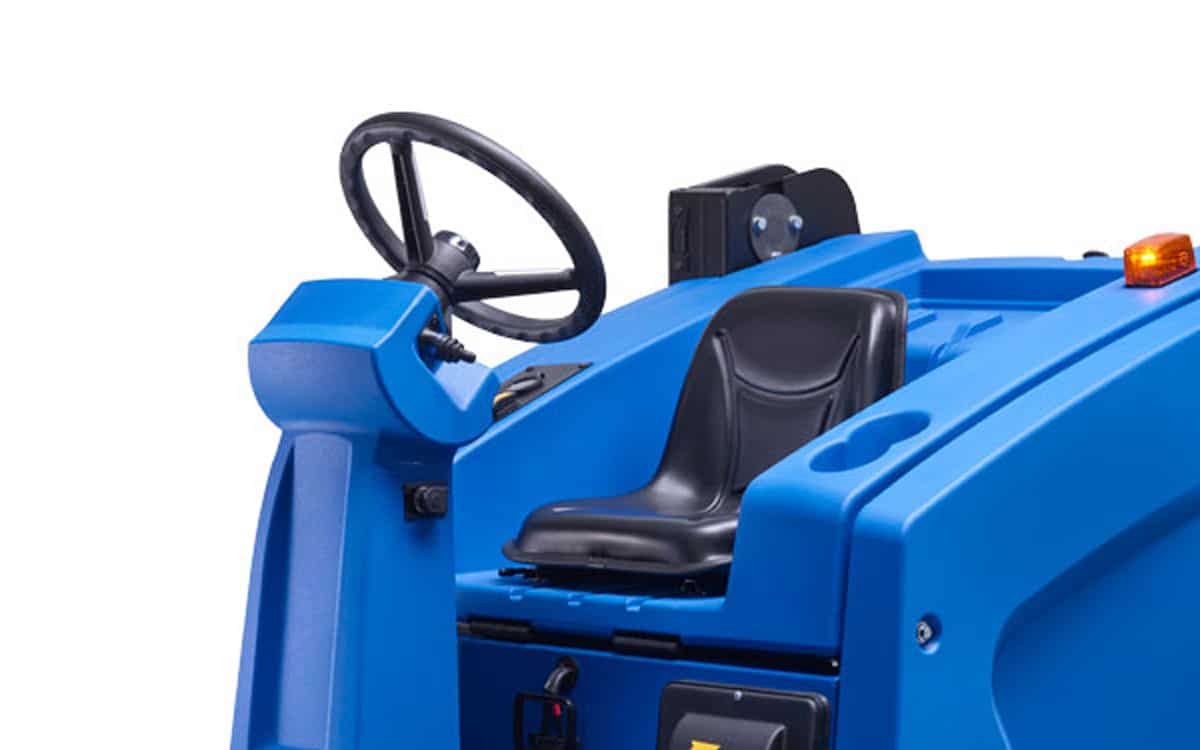

Intuitive operability
Clearly arranged operating elements with which the machine is operated easily and without instruction.

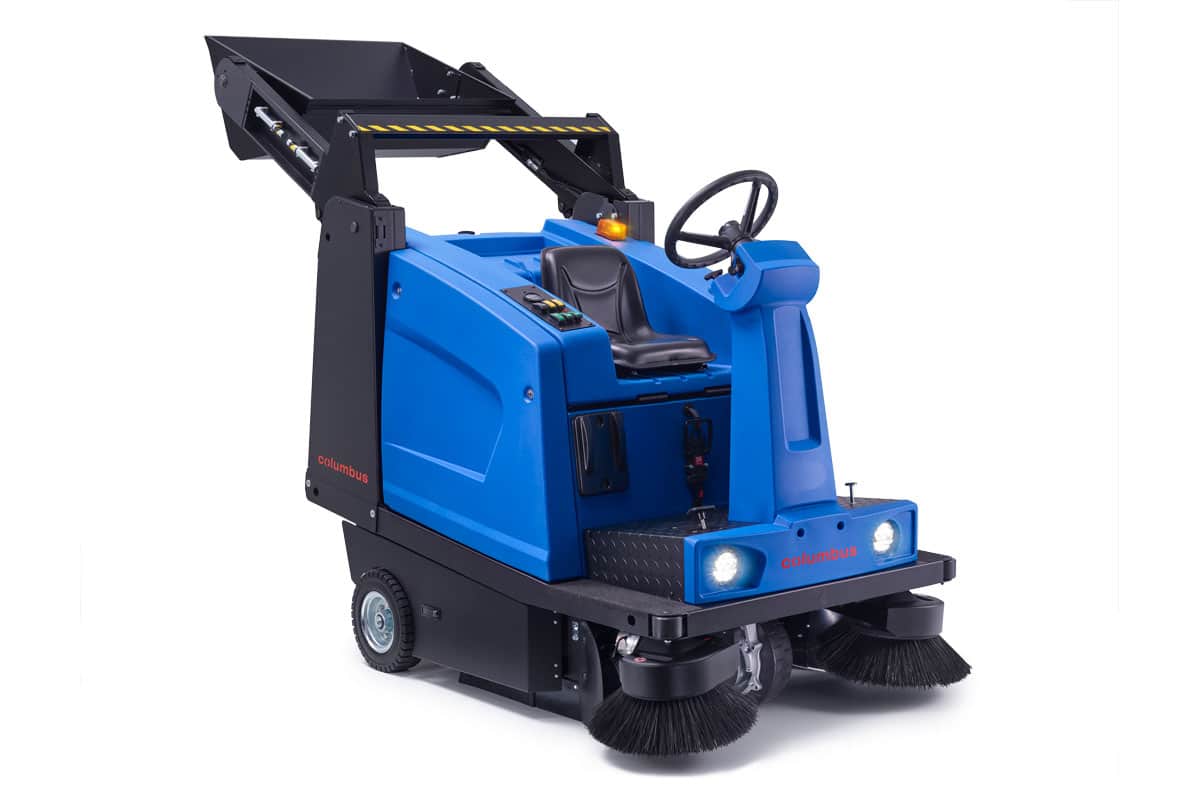

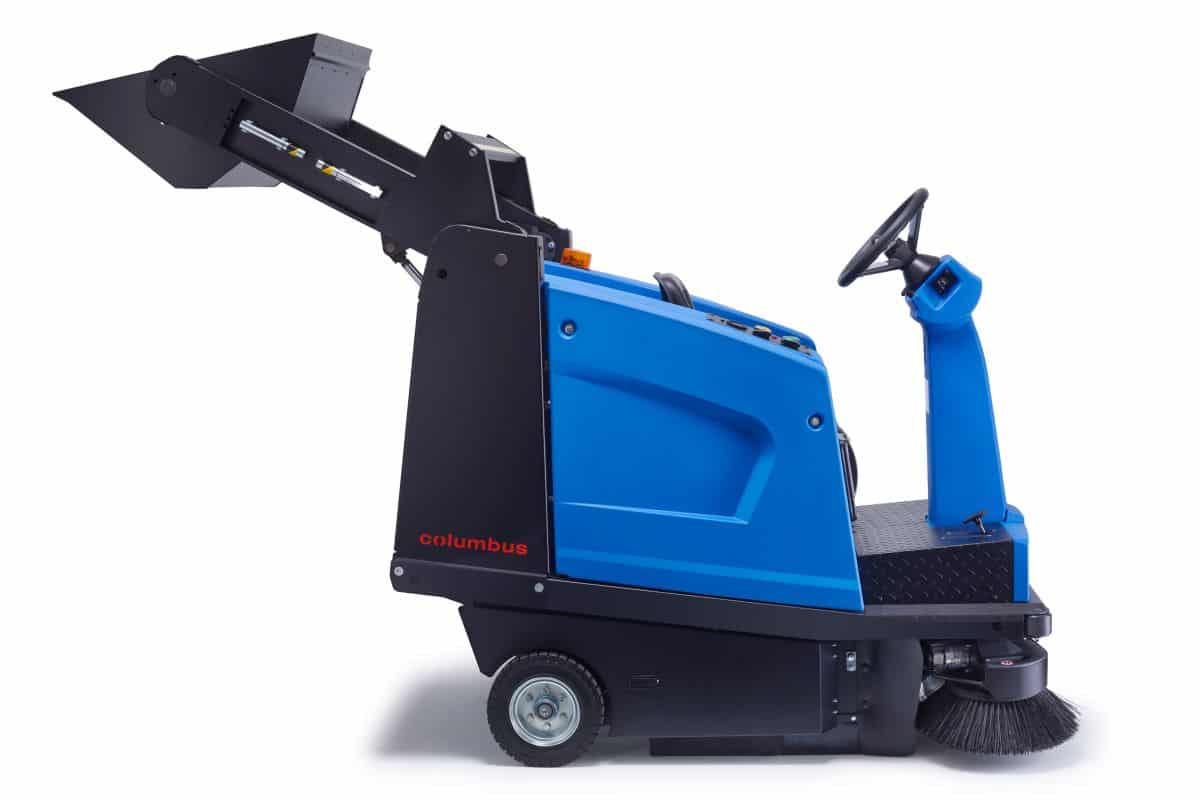

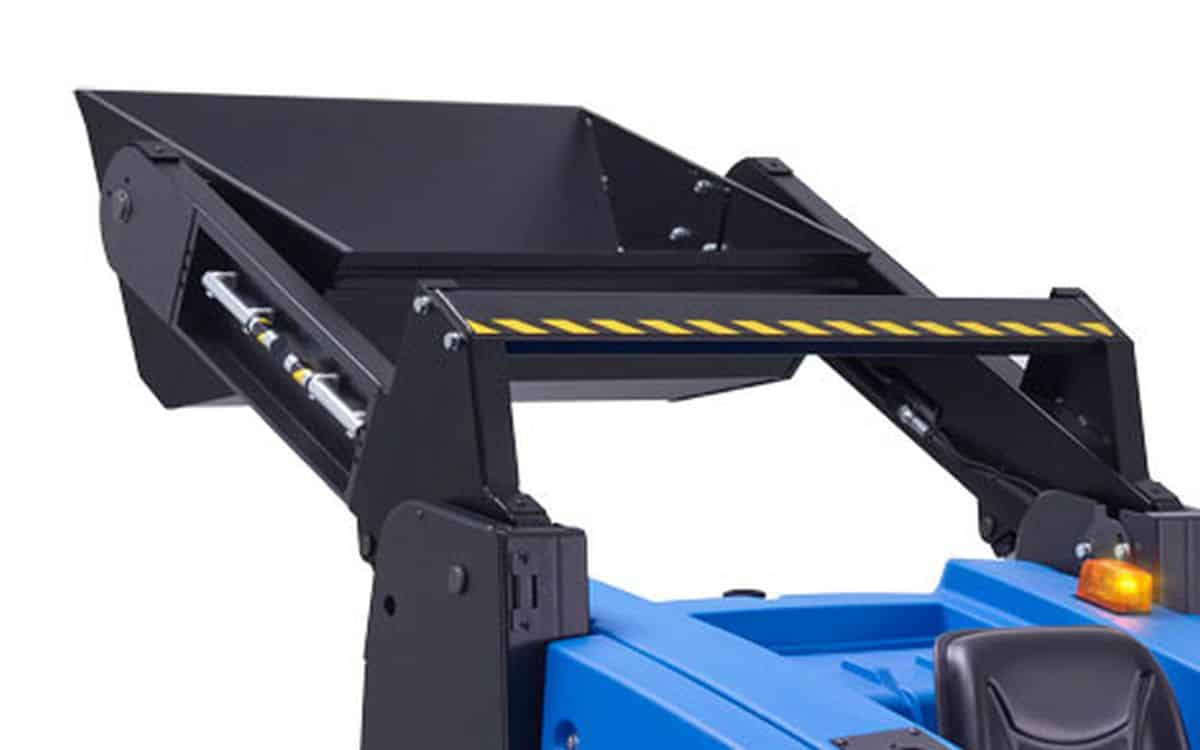

Hydraulic unload
Ergonomical emptying of the big waste container directly into the container up to 130 cm.

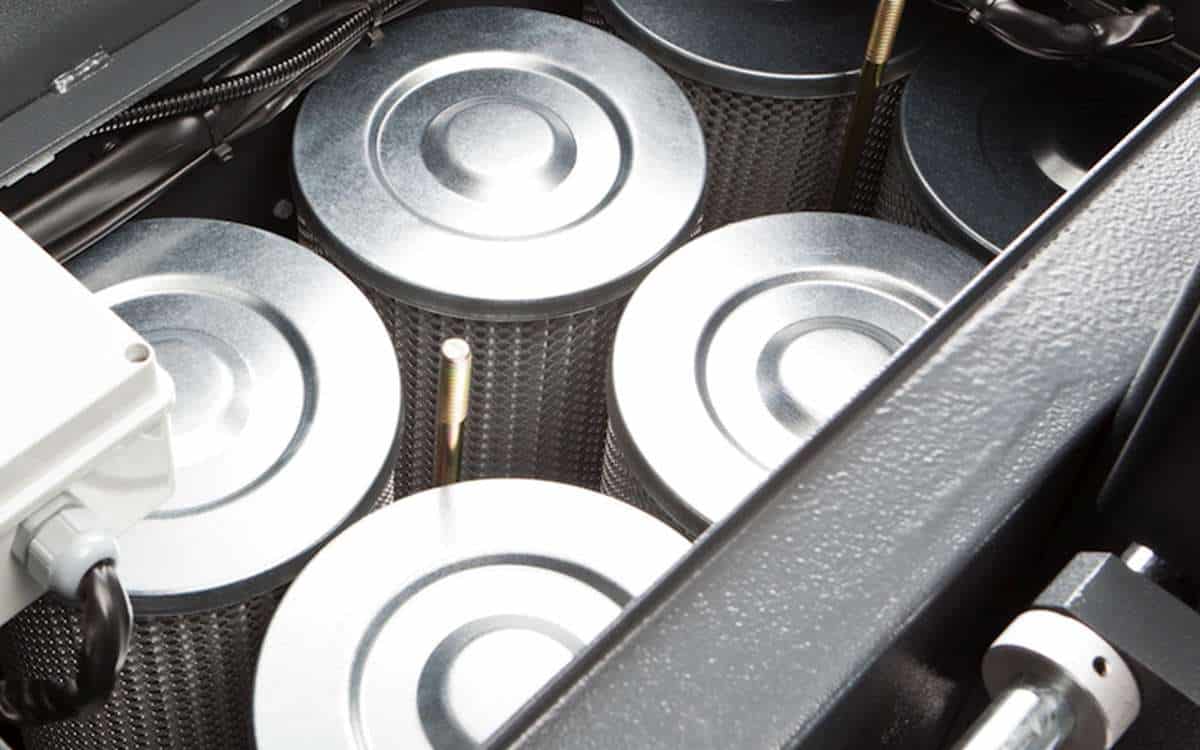

Powerful cartridge filters
Large washable polyester cylinder filter with 6 m² filter surface for perfect sweeping results.
Optimum seat adjustment to the operator – with maximum legroom.
Perfect sweeping results with retractable side brushes.
Higher cleaning performance thanks to increased working width.
Strong front-wheel drive for climbing inclines up to 16%.
Easy access to all important machine components.
Rotating beacon and Front-LED ensures high safety and good visibility.
Constantly great sweeping and suction performance.
Long and effective working intervals thanks to maximum filling of the waste container.
Protects the filter when moving over wet surfaces.
AKS 85|BM 150 H
Optional equipment
Dust cover
Additional protection against dust turbulence and even better sweeping results.
Pocketfilter
For an even larger filter surface and finer filtration.
Complete lighting system
Additional rear lights provide additional safety.
Second suction motor
Ensures higher suction power on particularly high demanding areas.
On-board vaccum
Safe time: simply complete the sweeping process and the final cleaning in one go.
On-Board charger
Charge the battery anywhere, with the high-quality integrated charger.
AKS 85|BM 150 H
Technical data
| Technical data | |
|---|---|
| L x W x H | 1750 x 1150 x 1500 mm |
| Working width w/o side brushes | 850 mm |
| Working width with 1 side brush | 1200 mm |
| Working width with 2 side brush | 1450 mm |
| Theoretical coverage max. | 8700 m²/h |
| Noise level | - |
| Empty weight w/o battery | 535 kg |
| Operating weight | 898 kg |
| Batteries / Electrical Data | |
|---|---|
| Rated voltage | 36 V |
| Rated power | 3720 W |
| Capacity, Gel max. | 240 Ah 5 |
| Waste container / Filter | |
|---|---|
| Waste container | 150 l |
| Container emptying | hydraulic |
| Discharge height | 1500 mm |
| Lifting load, max. | 95 kg |
| Filter | Cartridge filter |
| Filter | 6 m² |
| Filter shaker | electrical |
| Traction | |
|---|---|
| Mode of drive | Front-wheel drive |
| Rated power | 1000 W |
| Working Speed, max. | 6 km/h |
| Climbing ability, empty / full load | 16 / 12 % |
