Ride-on
AKS 85|BM 120
AKS 85|BM 120
Overview

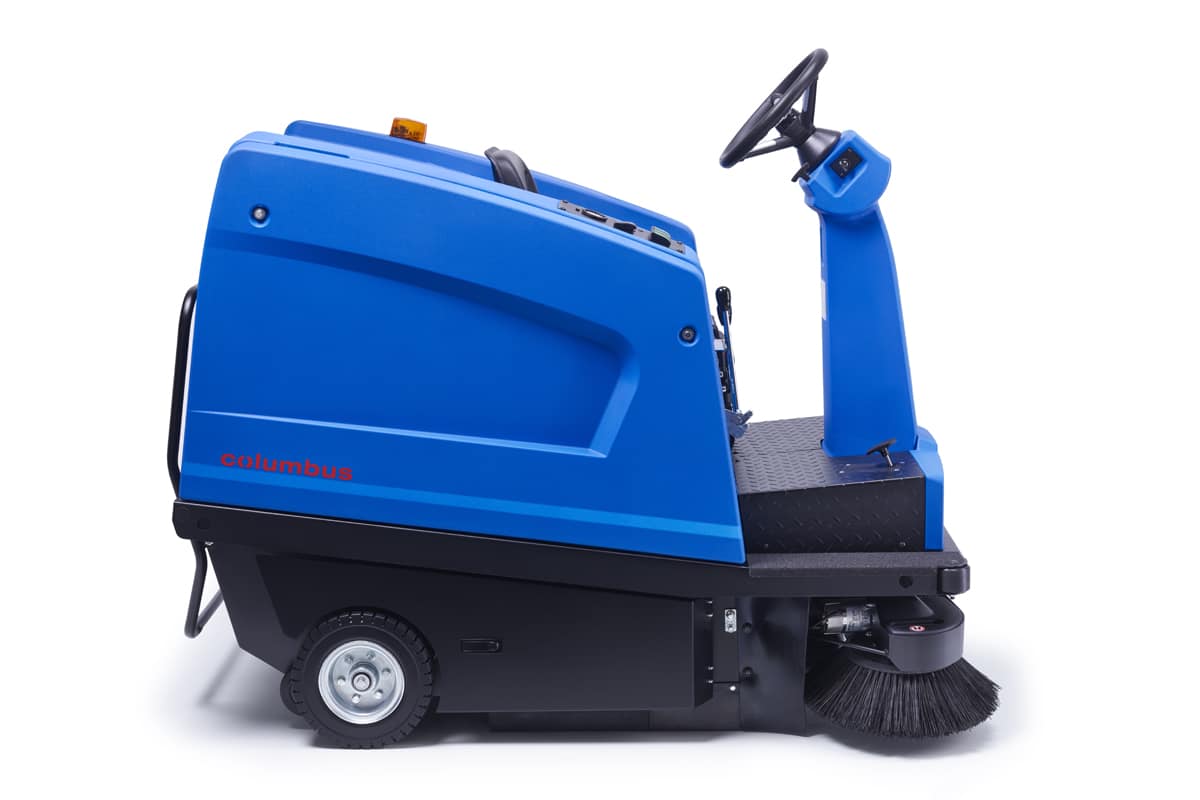

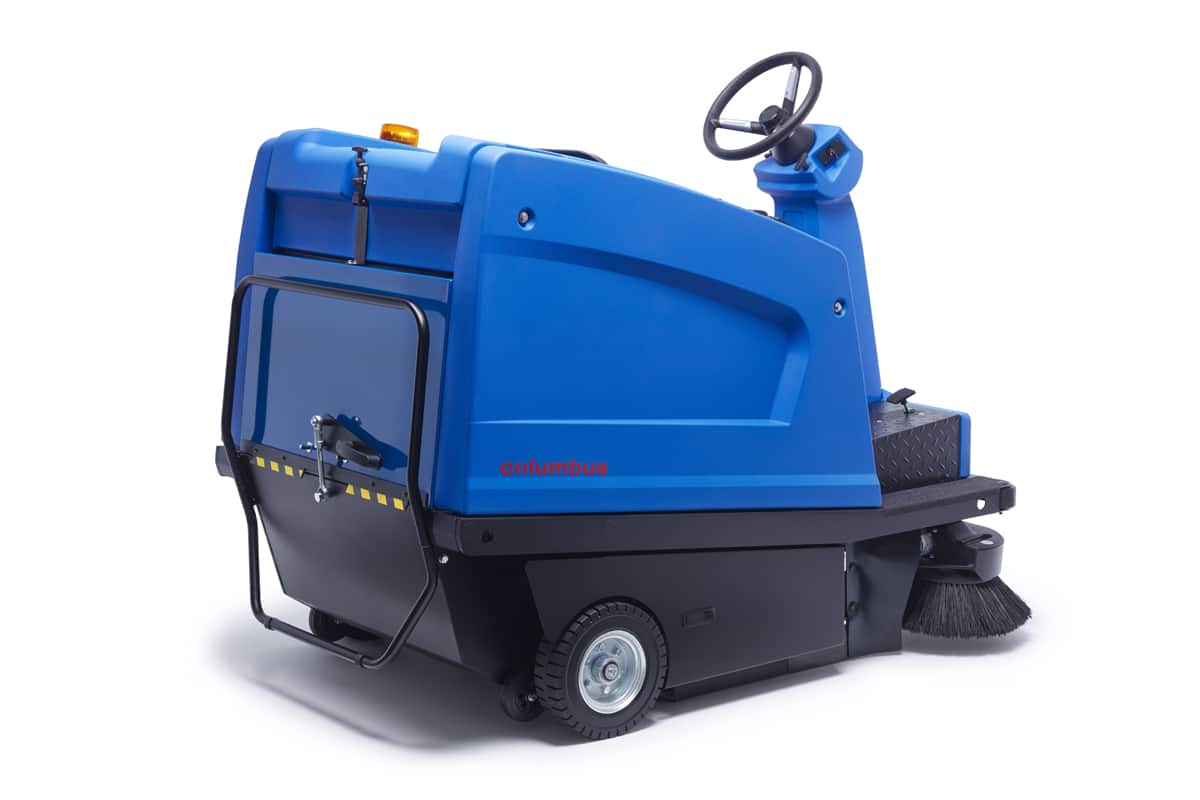

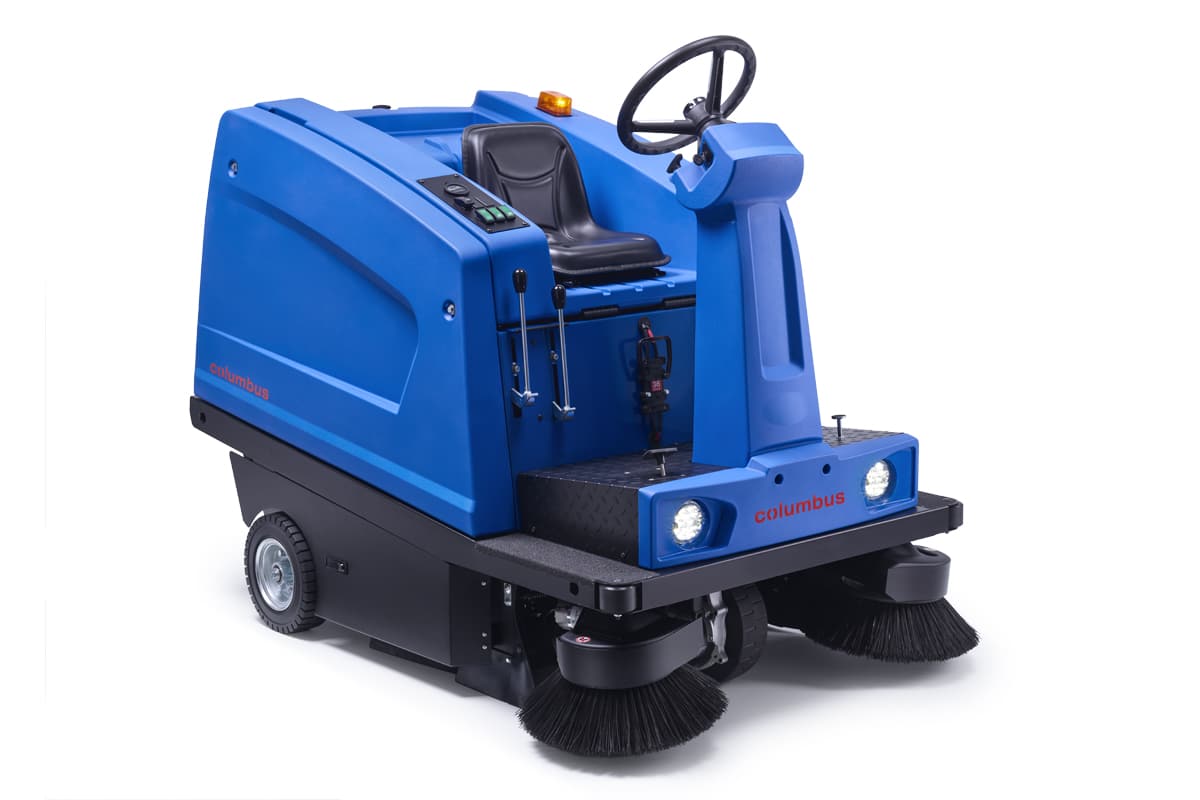

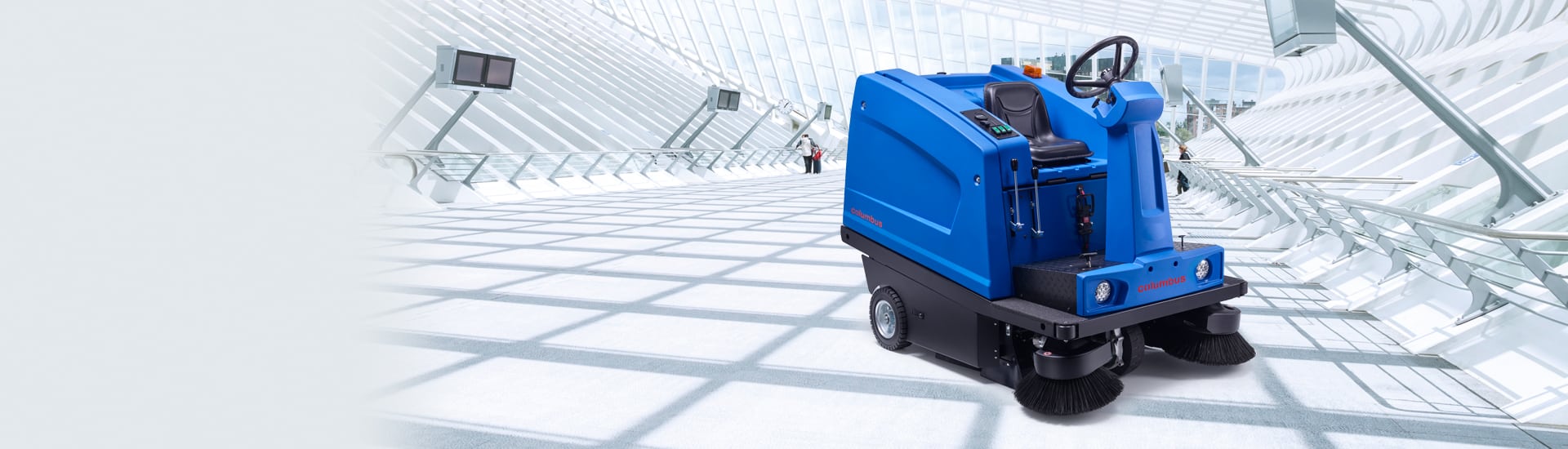

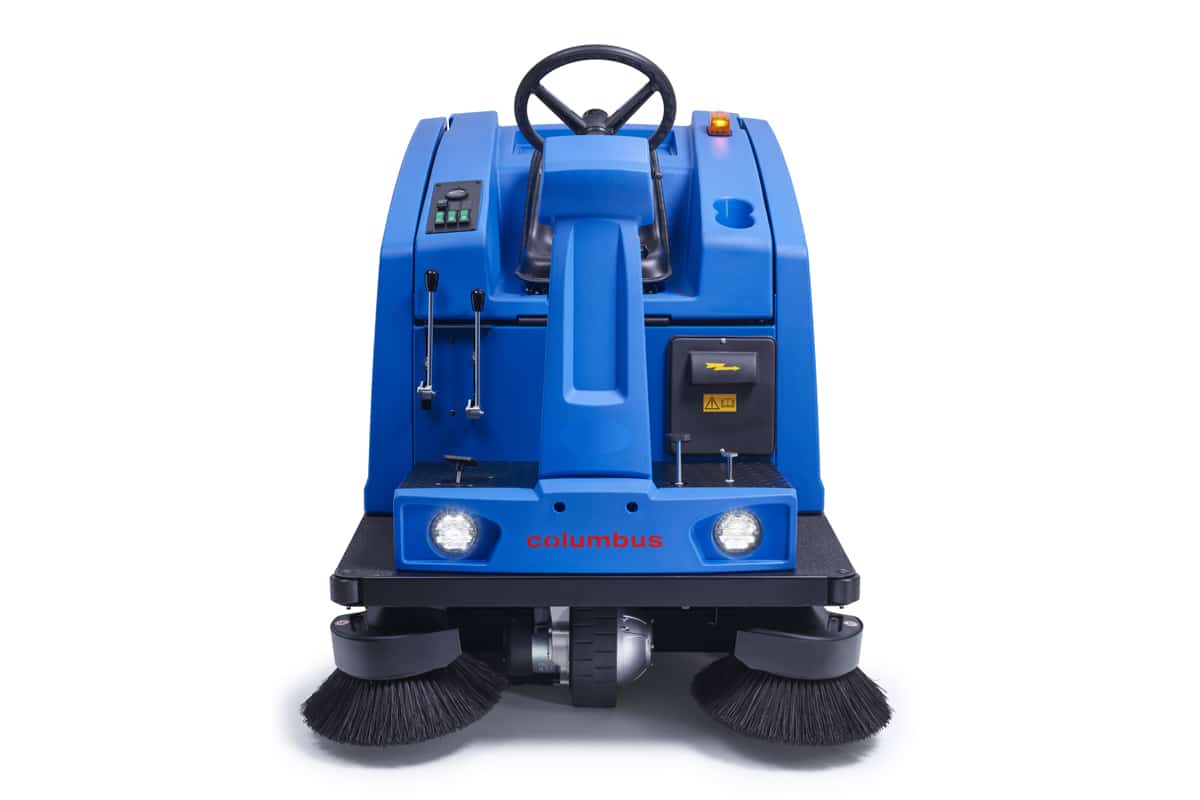

With a working width of 1450 mm and equipped with two side brushes as standard, this compact, robust, battery-powered ride-on sweeper ensures consistently clean sweeping results on medium-sized indoor and outdoor areas. The electric filter shaker enables consistently efficient cleaning of the 6 m² filter surface. With its robust steel construction, the AKS 85|BM 120 masters all heavy-duty applications.
Technical key data
AKS 85|BM 120
Product highlights

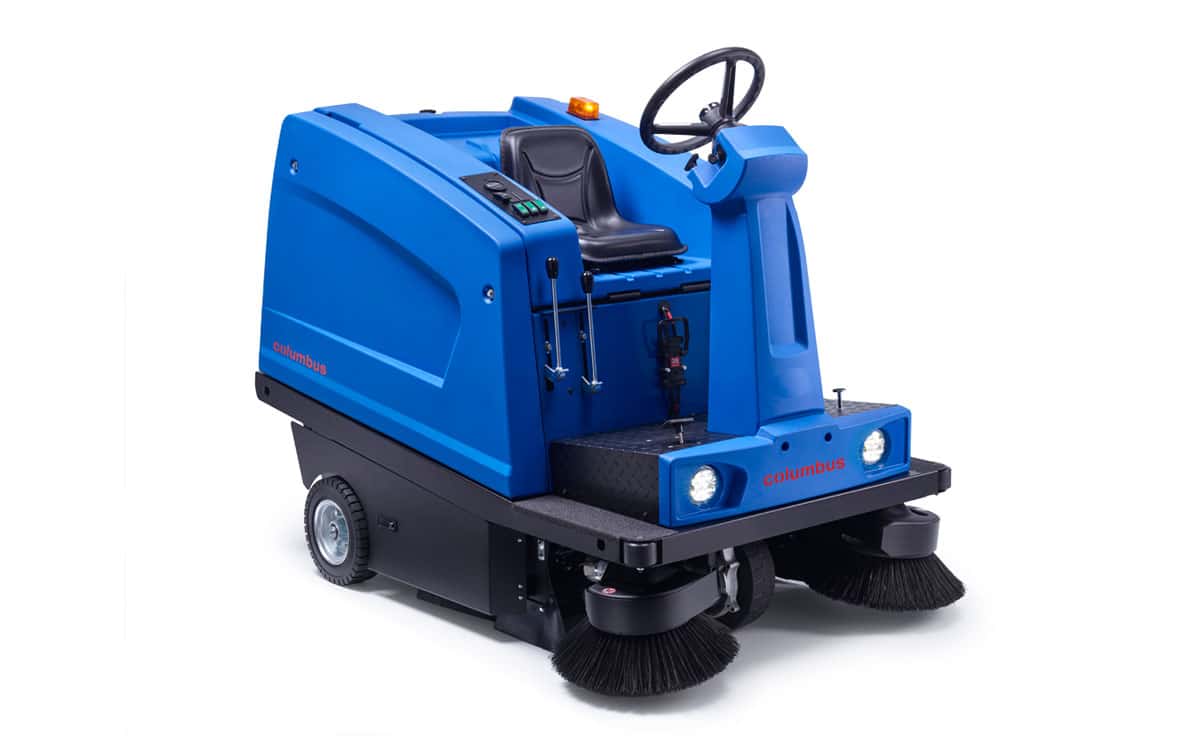

Compact design
Optimum overview on the working area and easy manoeuvrability.
Dust Buster
Optimized airflow ensures dust-free aspiration right up to the side brushes.

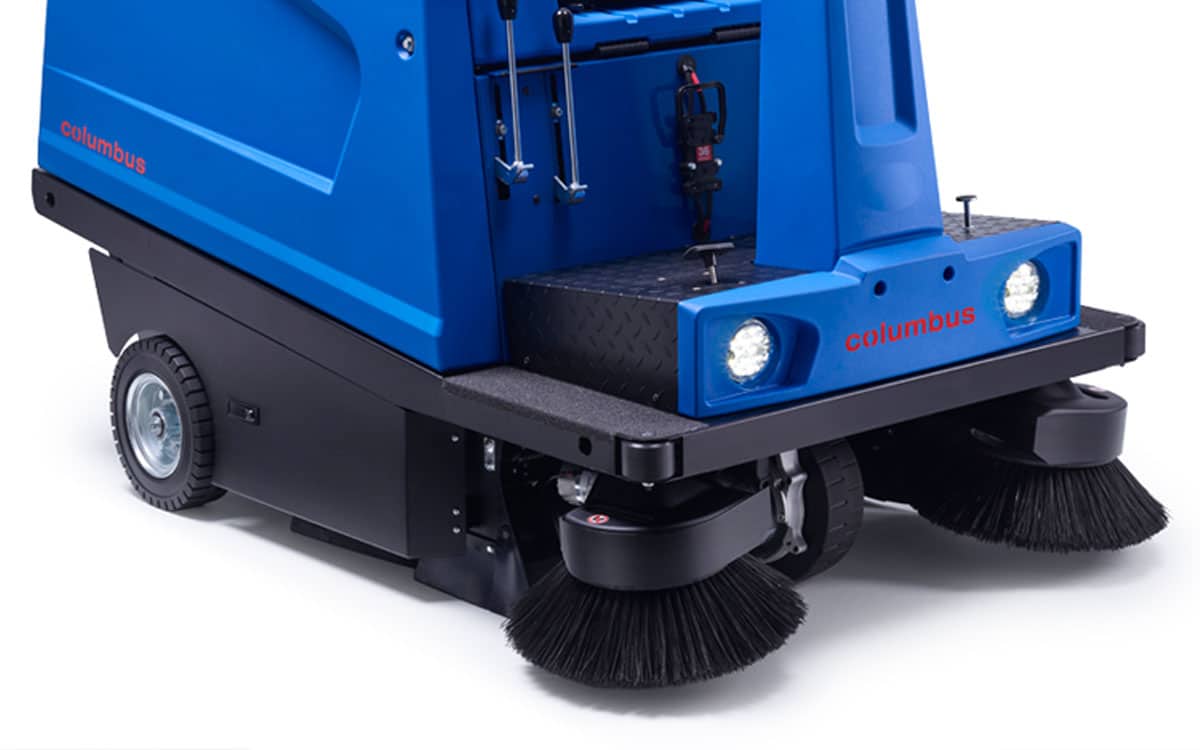

Robust construction
High quality steel construction: long lasting, sustainable, safe.

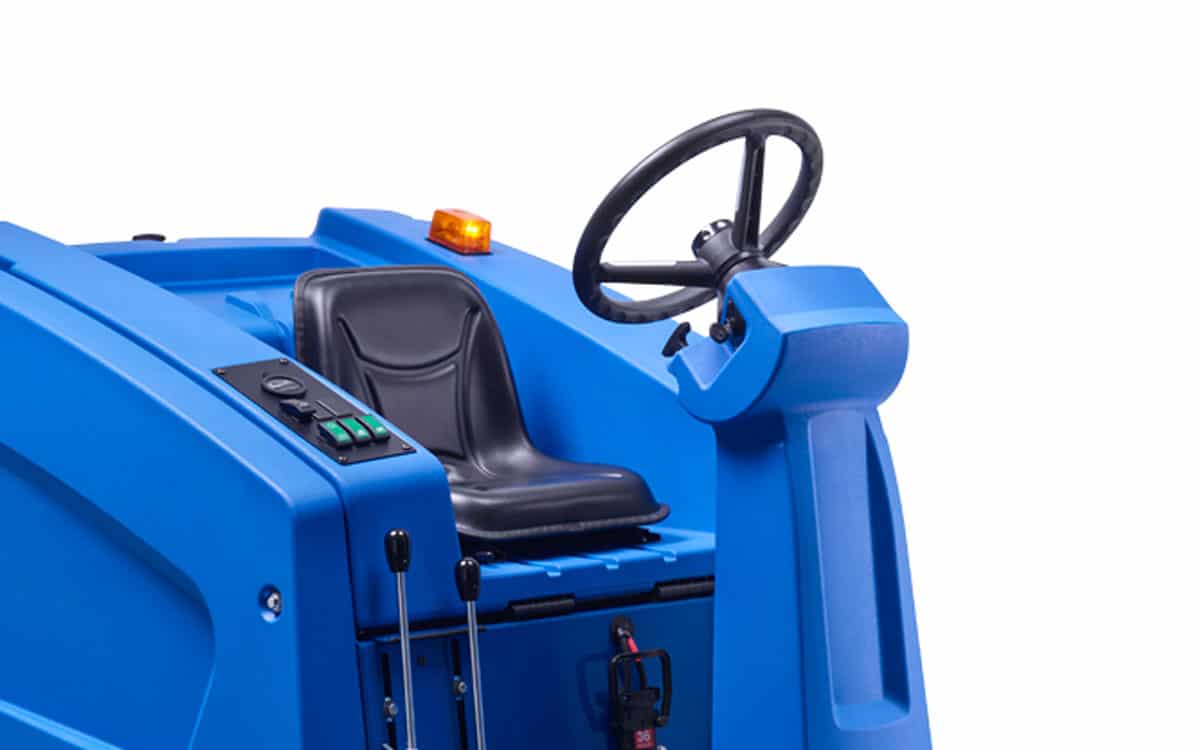

Intuitive operability
Clearly arranged operating elements with which the machine is operated easily and without instruction.

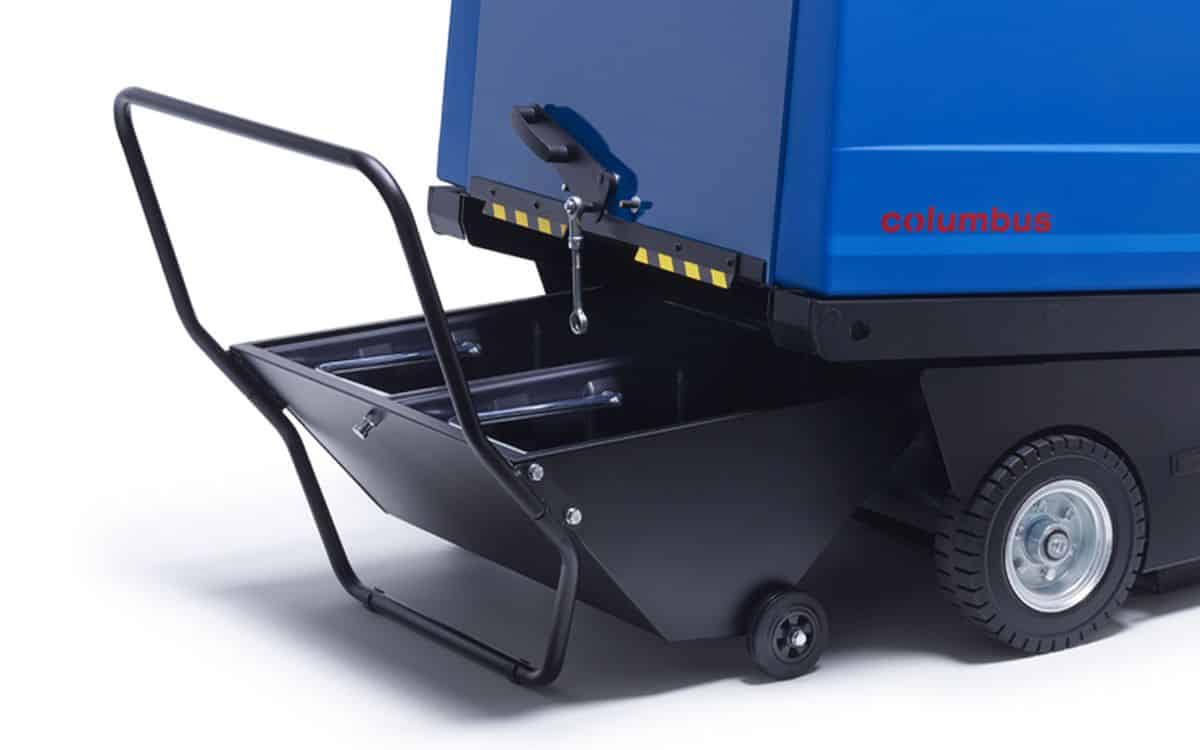

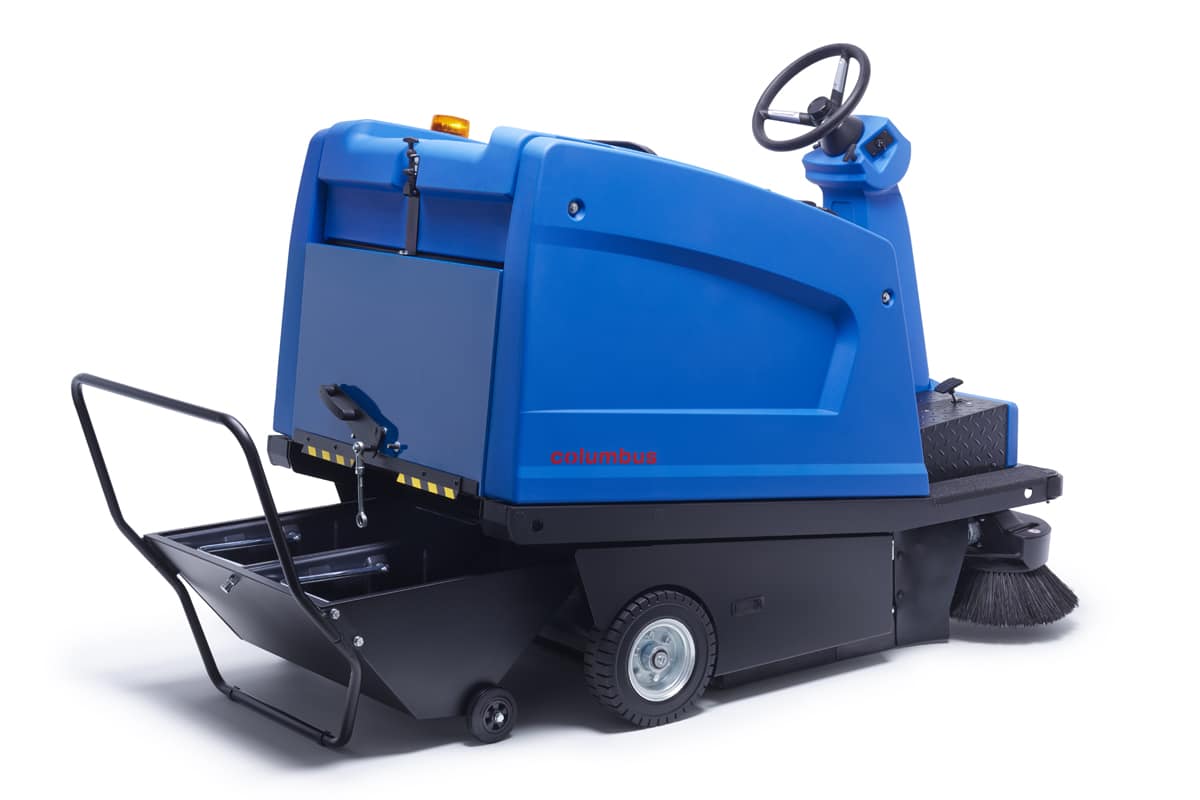

Extendable subdivided waste container
Easy and residue-free emptying of the spacious, smooth-walled hopper without undercutting.

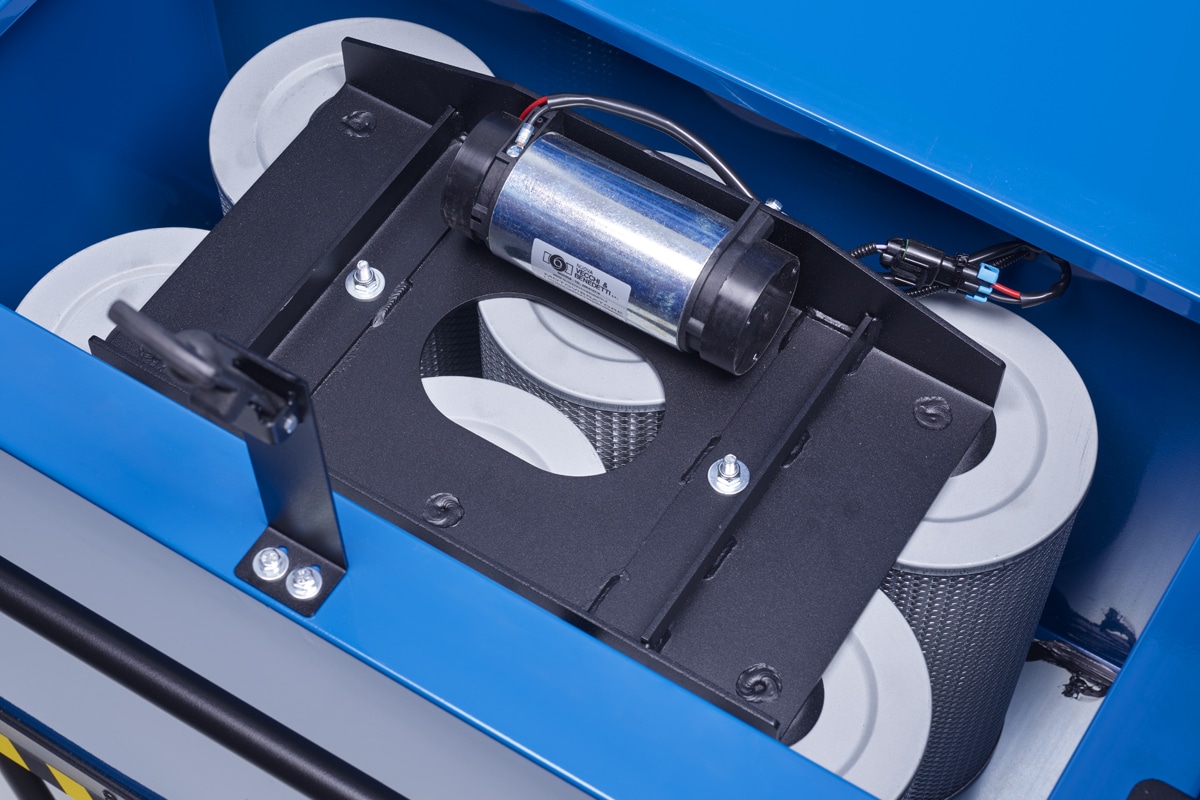

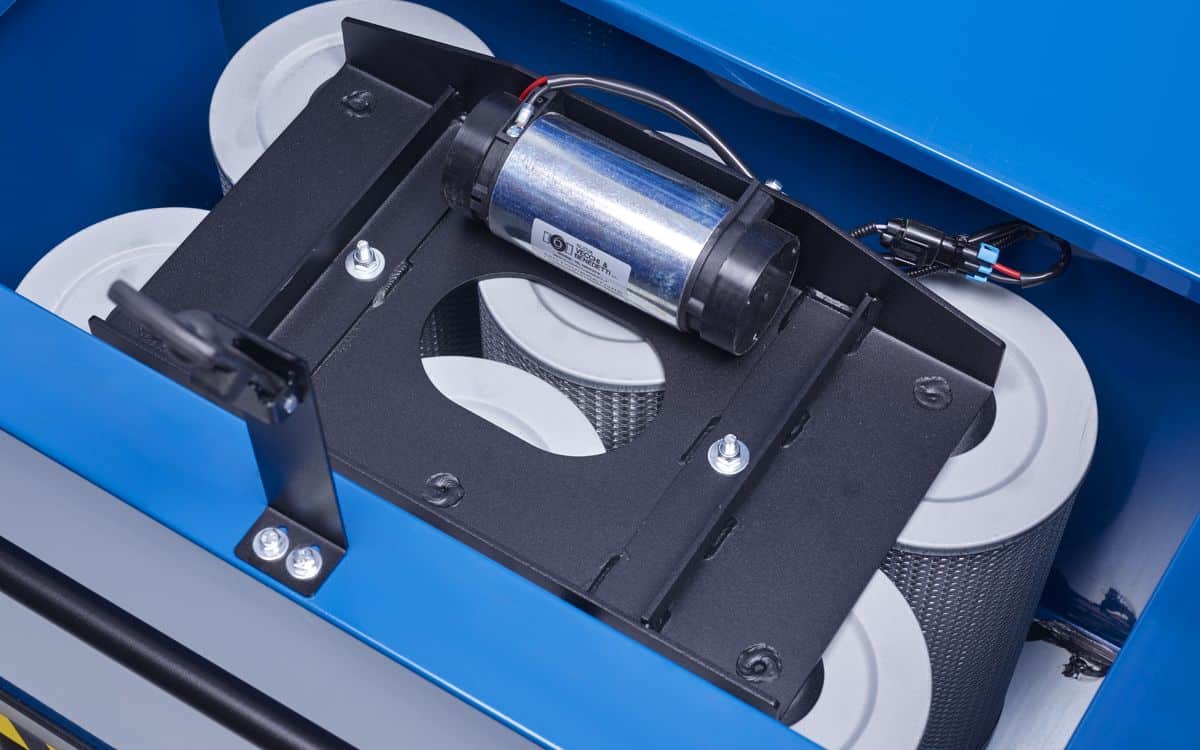

Powerful cartridge filters
Large washable polyester cylinder filter with 6 m² filter surface for perfect sweeping results.
Optimum seat adjustment to the operator – with maximum legroom.
Perfect sweeping results with retractable side brushes.
Higher cleaning performance thanks to increased working width.
Strong front-wheel drive for climbing inclines up to 16%.
Easy access to all important machine components.
Rotating beacon and Front-LED ensures high safety and good visibility.
Long and effective working intervals thanks to maximum filling of the waste container.
Constantly great sweeping and suction performance.
Protects the filter when moving over wet surfaces.
AKS 85|BM 120
Optional equipment
Dust cover
Additional protection against dust turbulence and even better sweeping results.
Pocketfilter
For an even larger filter surface and finer filtration.
Complete lighting system
Additional rear lights provide additional safety.
Second suction motor
Ensures higher suction power on particularly high demanding areas.
On-board vaccum
Safe time: simply complete the sweeping process and the final cleaning in one go.
On-Board charger
Charge the battery anywhere, with the high-quality integrated charger.
AKS 85|BM 120
Technical data
| Technical data | |
|---|---|
| L x W x H | 1750 x 1150 x 1500 mm |
| Working width w/o side brushes | 850 mm |
| Working width with 1 side brush | 1200 mm |
| Working width with 2 side brush | 1450 mm |
| Theoretical coverage max. | 8700 m²/h |
| Noise level | - |
| Empty weight w/o battery | 383 kg |
| Operating weight | 746 kg |
| Batteries / Electrical Data | |
|---|---|
| Rated voltage | 36 V |
| Rated power | 1720 W |
| Capacity, Gel max. | 180 Ah 5 |
| Waste container / Filter | |
|---|---|
| Waste container | 120 l |
| Container emptying | manual |
| Filter | Cartridge filter |
| Filter | 6 m² |
| Filter shaker | electrical |
| Traction | |
|---|---|
| Mode of drive | Front-wheel drive |
| Rated power | 1000 W |
| Working Speed, max. | 6 km/h |
| Climbing ability, empty / full load | 16 / 12 % |
