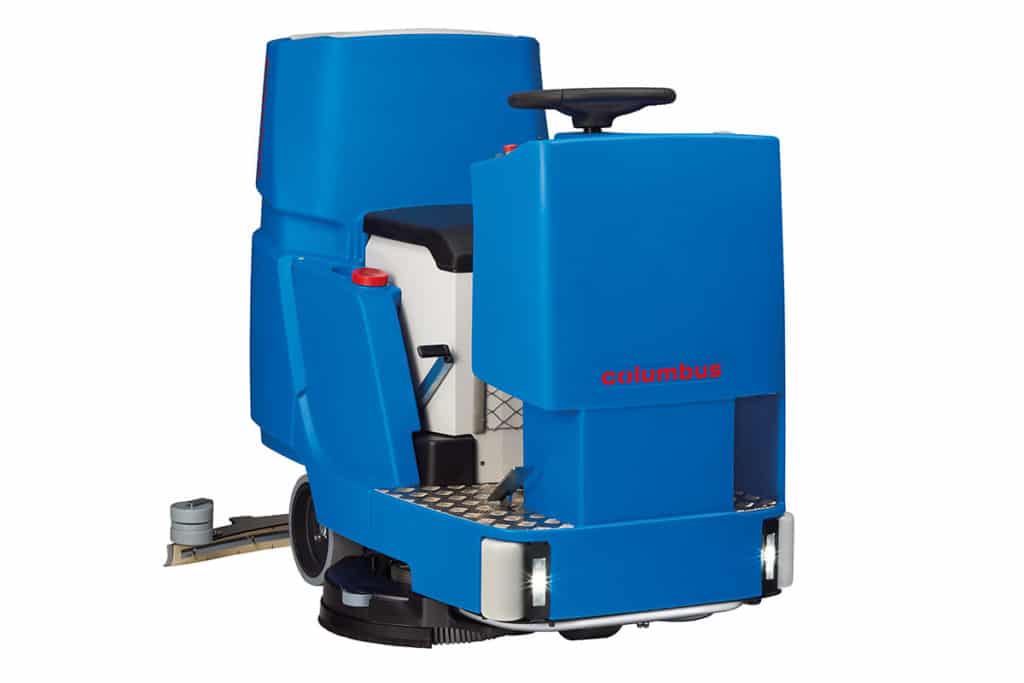

ARA 85|BM 120
| Tchnical data | |
|---|---|
| L x W x H | 1490 x 880 x 1260 mm |
| Working width | 850 mm |
| Suction width | 980 mm |
| Theoretical coverage max. | 5100 m²/h |
| Noise level | 62 / 60 dB(A) |
| Empty weight | 209 kg |
| Operating weight | 596 kg (240 Ah 5) |
| Batteries / elektrical data | |
| Rated voltage | 24 V |
| Power max. | 2395 W |
| Capacity wet | – |
| Capacity gel | 240 Ah 5 |
| Tank | |
| Solution tank capacity | 120 l |
| Recovery tank capacity | 140 l |
| Suction motor | |
| Low pressure | 110 mbar |
| Air flow | 32 l/s |
| Traction motor | |
| Power | 750 W |
| Speed | 6 km/h |
| Brushes and pad holders | |
| Number | 2 |
| Speed | 180 rpm |
| Brush pressure | 36 kg |
